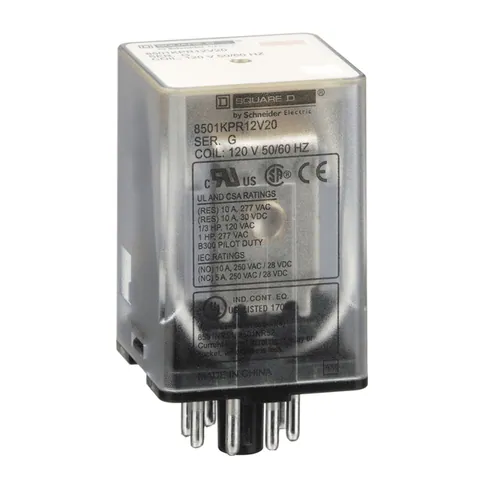

8501KPR12V20

Additional Information

Part Number

8501KPR12V20

UPC

785901147329

UNSPSC

39122325

Tariff Code

8536490075

Country of Origin

CN

Offer Sustainability

Rohs Exemption Information

Yes

Environmental Disclosure

ENVPEP1406038EN

Sustainable Offer Status

Green Premium product

Reach Regulation

Free of Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Reach Free Of Svhc

Yes

China Rohs Regulation

X

Circularity Profile

N/A

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Complementary

Contacts Material

silver alloy (AgNi)

Shape Of Pin

tubular

Rated Breaking Capacity

3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 10 A 277 V AC resistive control circuit UL 508 || 10 A 30 V DC resistive control circuit UL 508

Maximum Switching Voltage

300 V AC || 30 V DC

Rated Power In Hp

1 hp 277 V AC || 0.33 hp 120 V AC

Operating Time

20 ms - pick-up || 20 ms - drop-out

Product Compatibility

8501NR52 || 8501NR51

Specifications

[Uc] Control Circuit Voltage

120 V AC

Range Of Product

8501K

Mounting Support

socket

Product Or Component Type

relay

Control Type

without test button

Local Signalling

no indicator

Relay Type

general purpose

Switch Function

DPDT

Environment

Product Certifications

UL Listed || UL Recognized || CSA || CE

Height

2.66 in

Ambient Air Temperature For Operation

-40-131 °F

Width

1.4 in

Depth

1.4 in
