Description
Active Mature

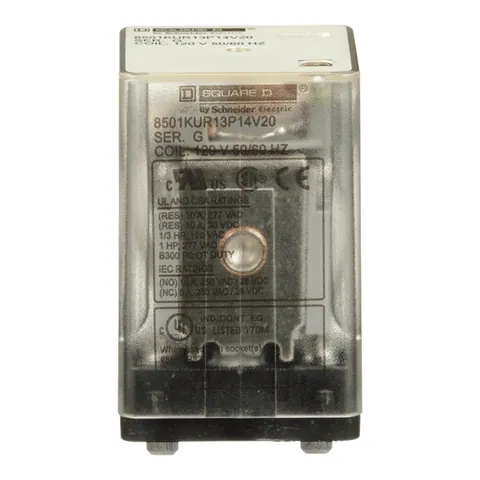

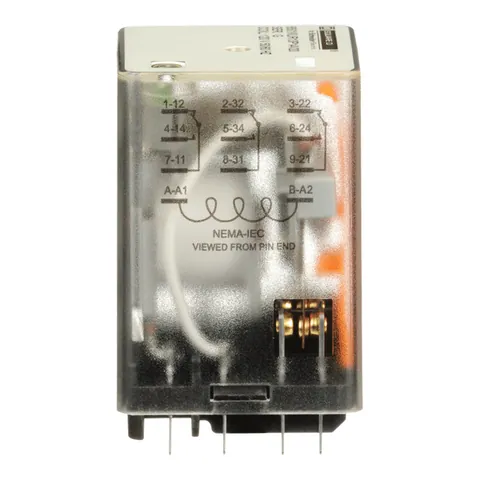

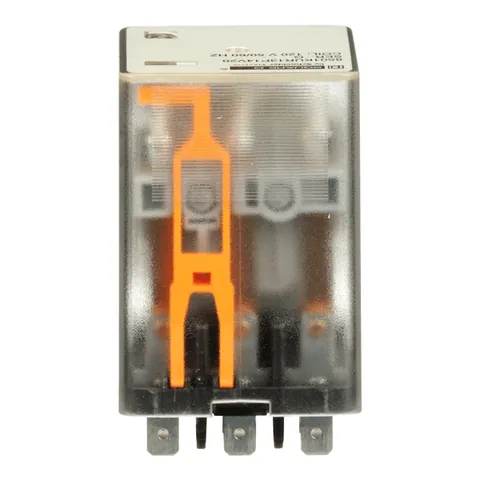

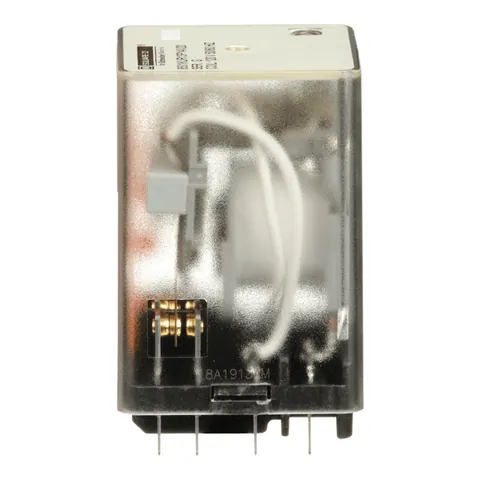

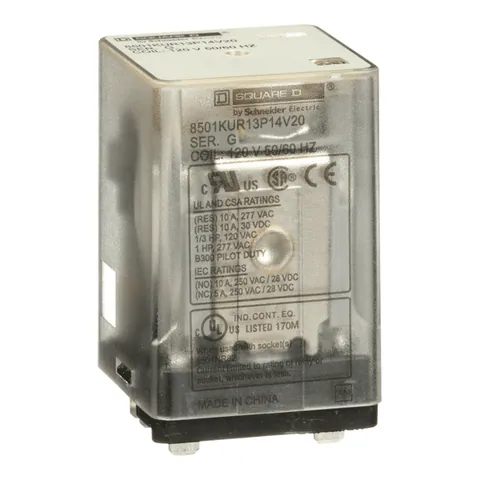

8501KU universal plug in relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 851NR82 relay socket. This relay has a 3PDT contact arrangements. It has three normally open and three normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 120 VAC nonreplaceable coil. A green LED indicator is supplied on this relay. 8501KU relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.- Country of Origin
- CN
- Part Number
- 8501KUR13P14V20
- Tariff Code
- 8536490075
- EAN
- 39122325
- UPC
- 785901981756
- UNSPSC
- 39122325
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
Send request for price
1
Payment methods:
Offer Sustainability
- China Rohs Regulation
- X
- Circularity Profile
- N/A
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1406038EN
- Sustainable Offer Status
- Green Premium product
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc
- Yes
Environment
- Product Certifications
- UL Listed || UL Recognized || CSA || CE
- Height
- 2.25 in
- Ambient Air Temperature For Operation
- -40-131 °F
- Width
- 1.37 in
- Depth
- 1.4 in
Complementary
- Contacts Material
- silver alloy (AgNi)
- Rated Power In Hp
- 1 hp 277 V AC || 0.33 hp 120 V AC
- Shape Of Pin
- spade
- Rated Breaking Capacity
- 3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 10 A 277 V AC resistive control circuit UL 508 || 10 A 30 V DC resistive control circuit UL 508
- Operating Time
- 20 ms - pick-up || 20 ms - drop-out
- Product Compatibility
- 8501NR82
- Maximum Switching Voltage
- 300 V AC || 30 V DC
Specifications
- [Uc] Control Circuit Voltage
- 120 V AC
- Local Signalling
- indicator light relay energised LED
- Relay Type
- general purpose
- Range Of Product
- 8501K
- Mounting Support
- socket
- Switch Function
- 3PDT
- Product Or Component Type
- relay
