Schneider Electric
8501RS34V20
1 / 5
Opis
Końcówka Serii

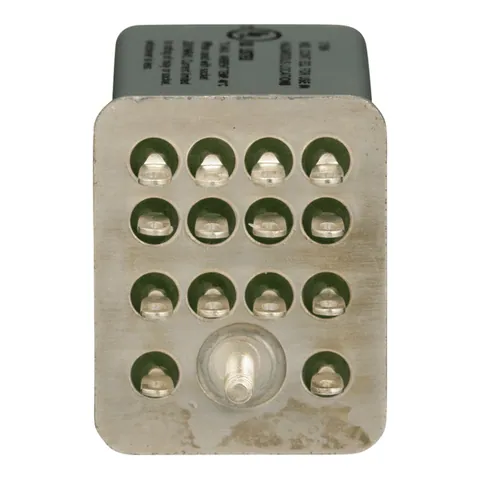

8501RS miniature plug in relays are designed for use in Class 1 Division 2 hazardous locations. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR45 or 8501NR45B relay socket. Relay is available with 4PDT contact arrangements. It has four normally open and four normally closed contacts. The contacts have a 5 ampere resistive rating at 240 VAC, at 120 VAC and at 30 VDC. Relays can be ordered with a wide variety of coil voltages. This relay has a 120 VAC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.- Country of Origin
- CN
- Part Number
- 8501RS34V20
- Tariff Code
- 8536490075
- EAN
- 39122325
- UPC
- 785901031888
- UNSPSC
- 39122325
- Termin płatności do 90 dni od 500+ dostawców.
- Rabaty na odsprzedaż do 40%!
Wyślij zapytanie o cenę
1
Metody płatności:
Environment
- Product Certifications
- UL Listed || UL Recognized || CSA || CE
- Ambient Air Temperature For Operation
- -40-131 °F
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1511008EN
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Circularity Profile
- N/A
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
- [Uc] Control Circuit Voltage
- 120 V AC
- Height
- 29.4 mm
- Mounting Support
- socket
- Contacts Material
- hermetically sealed silver tin oxide
- Rated Power In Hp
- not rated
- Shape Of Pin
- spade
- Rated Breaking Capacity
- 5 A 120 V AC resistive control circuit UL 508 || 5 A 240 V AC resistive control circuit UL 508 || 5 A 30 V DC resistive control circuit UL 508
- Maximum Switching Voltage
- 30 V DC || 240 V AC
- Control Type
- without test button
- Local Signalling
- no indicator
- Switch Function
- 4PDT
- Operating Time
- 20 ms - pick-up || 20 ms - drop-out
- Width
- 23.1 mm
- Depth
- 38.9 mm
- Product Compatibility
- 8501NR45
Specifications
- Range Of Product
- 8501R
- Product Or Component Type
- Miniature Relay
- Relay Type
- low voltage
