Schneider Electric
8501RS41V14
1 / 5
Beschreibung
Aktiv Reif

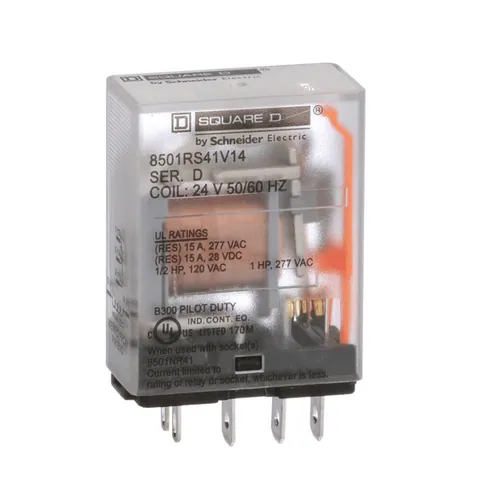

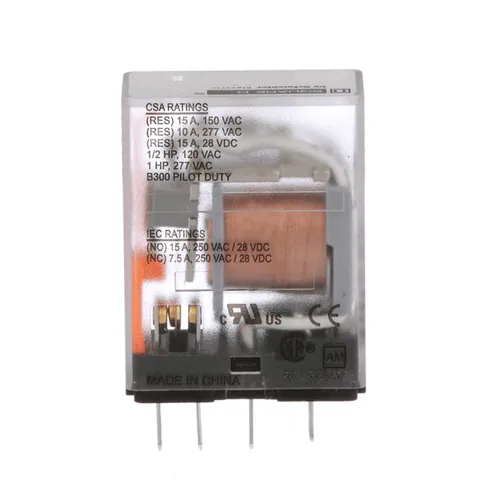

8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR41 or 8501NR41B relay socket. Relay is available with SPDT contact arrangements. It has one normally open and one normally closed contact. The contacts have a 15 ampere resistive rating at 277 VAC, at 120 VAC and at 28 VDC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VAC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.- Country of Origin
- CN
- Part Number
- 8501RS41V14
- Tariff Code
- 8536490075
- EAN
- 39122325
- UPC
- 785901137023
- UNSPSC
- 39122325
- Erhalten Sie bis zu 90 Tage Zahlungsziele von 500+ Lieferanten
- Wiederverkaufsrabatte bis zu 40%!
Preisanfrage senden
1
Zahlungsmöglichkeiten:
Environment
- Product Certifications
- UL Listed || UL Recognized || CSA || CE
- Ambient Air Temperature For Operation
- -40-131 °F
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Circularity Profile
- N/A
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1511008EN
- Sustainable Offer Status
- Green Premium product
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc
- Yes
Complementary
- [Uc] Control Circuit Voltage
- 24 V AC
- Height
- 27.3 mm
- Local Signalling
- no indicator
- Mounting Support
- socket
- Contacts Material
- silver alloy, gold flashed
- Rated Power In Hp
- 0.5 120 V AC || 1 277 V AC
- Shape Of Pin
- spade
- Switch Function
- SPDT
- Rated Breaking Capacity
- 3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 15 A 120 V AC resistive control circuit UL 508 || 10 A 277 V AC resistive control circuit UL 508 || 15 A 28 V DC resistive control circuit UL 508
- Operating Time
- 20 ms - pick-up || 20 ms - drop-out
- Width
- 14 mm
- Depth
- 41.8 mm
- Product Compatibility
- 8501NR41
- Maximum Switching Voltage
- 300 V AC || 30 V DC
- Control Type
- without test button
Specifications
- Relay Type
- standard
- Range Of Product
- 8501R
- Product Or Component Type
- Miniature Relay
