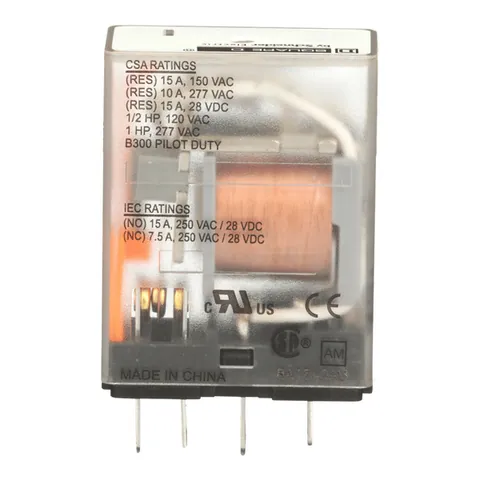

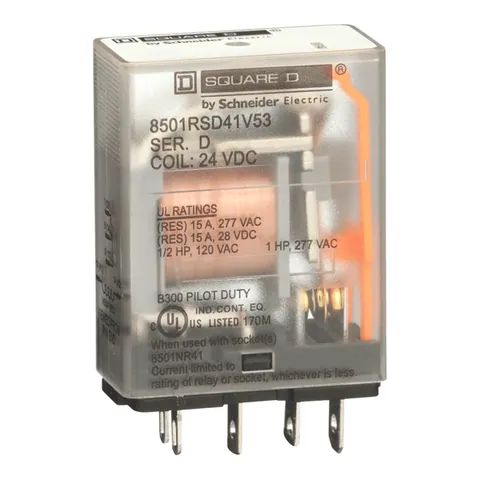

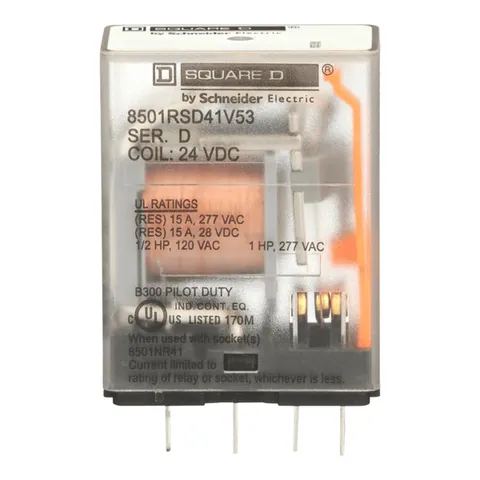

Schneider Electric 8501RSD41V53

Name: Miniature Relay, Harmony 8501R, SPDT, 5 blades, coil, 1HP at 277V AC, 15A resistive at 120V AC, 24V DC, 1NO+ 1NC
Brand: Schneider Electric
SKU: 8501RSD41V53

Miniature Relay, Harmony 8501R, SPDT, 5 blades, coil, 1HP at 277V AC, 15A resistive at 120V AC, 24V DC, 1NO+ 1NC

1 / 6

Manufacturer catalogue image

Product Description

Lifecycle Status:

8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR41 or 8501NR41B relay socket. Relay is available with SPDT contact arrangements. It has one normally open and one normally closed contact. The contacts have a 15 ampere resistive rating at 277 VAC, at 120 VAC and at 28 VDC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VDC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.

Send Inquiry

Payment methods:

Offer details

Best offer from:: Trusted supplier — Romania, member since 2023, 1–4 employees
Availability:: 1 pc.
On Request
Updated at: 22-08-2026
Condition:: New Surplus

New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.

The Seller is responsible for shipping the product and invoicing
