Description
Active Mature

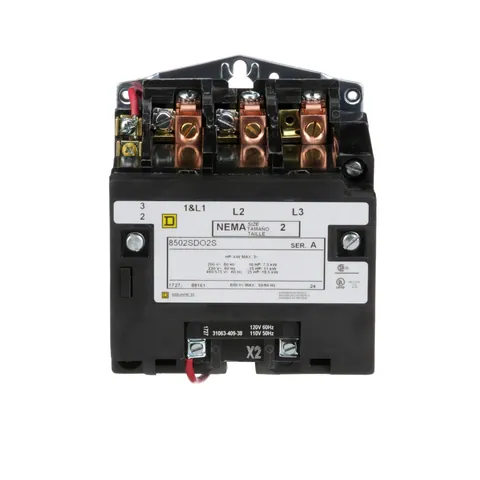

Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 2 non-reversing contactor has a 45 ampere rating. Three phase NEMA Size 2 contactors have 10 HP at 200, 15 HP at 230 VAC and 25 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 110/120 VAC 50/60 Hz coil that is wired for separate control. This NEMA contactor is an open device without an enclosure. This contactor is 5.13 inches tall, 4.31 inches wide and 4.94 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.- Country of Origin
- MX
- Part Number
- 8502SDO2V02S
- Tariff Code
- 8536490065
- EAN
- 39121529
- UPC
- 785901881612
- UNSPSC
- 39121529
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
Send request for price
1
Payment methods:
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Not compliant
Environmental
- Product Certifications
- UL listed file E78351 CCN NLDX || CSA
- Nema Degree Of Protection
- not rated (open device)
Complementary
- Height
- 130.30 mm
- Auxiliary Contact Composition
- without
- Nema Size
- 2
- [Uc] Control Circuit Voltage
- 120 V AC 60 Hz || 110 V AC 50 Hz
- Rated Power In Hp
- 10 HP 200 V AC || 15 HP 230 V AC || 25 HP 460 V AC || 25 HP 575 V AC
- Product Compatibility
- circuit-breaker 100 A maximum, SCCR: 100 kA at 480 V AC || fuse J 100 A maximum, SCCR: 100 kA at 600 V AC || fuse T 100 A maximum, SCCR: 100 kA at 600 V AC || fuse RK1 100 A maximum, SCCR: 100 kA at 600 V AC || fuse RK5 100 A maximum, SCCR: 100 kA at 600 V AC
- Control Type
- no control units
- Phase
- 3 phase
- Local Signalling
- no indicator
- Poles Description
- 3P
- Electrical Connection
- screw clamp terminals
- Provided Equipment
- fuse not supplied
- Line Rated Current
- 45 A
- Control Circuit
- separate control circuit
- Width
- 109.47 mm
- Depth
- 125.48 mm
- [Ue] Rated Operational Voltage
- 600 V AC
Specifications
- Range Of Product
- 8502S
- Contactor Application
- non-reversing
- Product Or Component Type
- contactor
Documents
Data Sheet
DownloadRelated products
