8502SDO2V08
1 / 5
Description
Active Mature

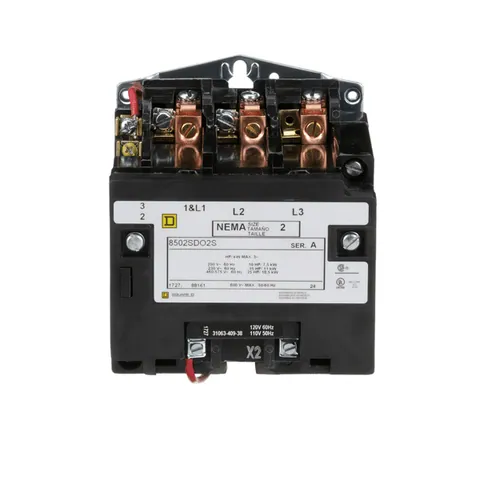

Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 2 non-reversing contactor has a 45 ampere rating. Three phase NEMA Size 2 contactors have 10 HP at 200, 15 HP at 230 VAC and 25 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 208 VAC 60 Hz coil that is wired for common control. This NEMA contactor is an open device without an enclosure. This contactor is 5.13 inches tall, 4.31 inches wide and 4.94 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.- Country of Origin
- MX
- Part Number
- 8502SDO2V08
- Tariff Code
- 8536490065
- EAN
- 39121529
- UPC
- 785901619932
- UNSPSC
- 39121529
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
Send request for price
1
Payment methods:
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Not compliant
Environmental
- Product Certifications
- UL listed file E78351 CCN NLDX || CSA
- Nema Degree Of Protection
- not rated (open device)
Complementary
- Height
- 130.30 mm
- Auxiliary Contact Composition
- without
- Nema Size
- 2
- [Uc] Control Circuit Voltage
- 208 V AC 60 Hz
- Rated Power In Hp
- 10 HP 200 V AC || 15 HP 230 V AC || 25 HP 460 V AC || 25 HP 575 V AC
- Product Compatibility
- circuit-breaker 100 A maximum, SCCR: 100 kA at 480 V AC || fuse J 100 A maximum, SCCR: 100 kA at 600 V AC || fuse T 100 A maximum, SCCR: 100 kA at 600 V AC || fuse RK1 100 A maximum, SCCR: 100 kA at 600 V AC || fuse RK5 100 A maximum, SCCR: 100 kA at 600 V AC
- Control Type
- no control units
- Phase
- 3 phase
- Local Signalling
- no indicator
- Poles Description
- 3P
- Electrical Connection
- screw clamp terminals
- Provided Equipment
- fuse not supplied
- Line Rated Current
- 45 A
- Control Circuit
- common control circuit
- Width
- 109.47 mm
- Depth
- 125.48 mm
- [Ue] Rated Operational Voltage
- 600 V AC
Specifications
- Range Of Product
- 8502S
- Contactor Application
- non-reversing
- Product Or Component Type
- contactor
