Schneider Electric
8502SGO2V06
1 / 5
Opis
Końcówka Serii

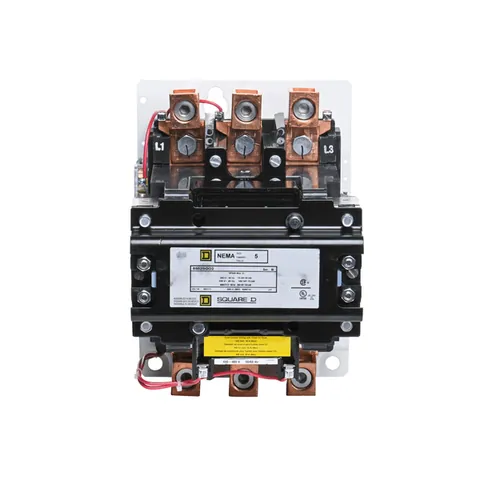

Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 5 non-reversing contactor has a 270 ampere rating. Three phase NEMA Size 5 contactors have 75 HP at 200, 100 HP at 230 VAC and 200 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 440/480 VAC 50/60 Hz coil that is wired for common control. This NEMA contactor is an open device without an enclosure. This contactor is 12.31 inches tall, 8.67 inches wide and 8.75 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.- Country of Origin
- US
- Part Number
- 8502SGO2V06
- Tariff Code
- 85364900
- EAN
- 785901851110
- UPC
- 785901851110
- UNSPSC
- 39121529
Metody płatności:
- Najlepsza oferta od:
Zaufany dostawca Automa.Net- Dostępność:
- 10 szt.W magazynieZaktualizowano: 08-11-2024
- Gwarancja:
- 12 miesięcy
- Szacowany czas dostawy:
- Na zapytanie
- Stan produktu:
- Fabrycznie Nowe, Zapieczętowane
Fabrycznie Nowe, Zapieczętowane - Nowy, nieużywany, nieotwarty, nieuszkodzony przedmiot w oryginalnym opakowaniu zapieczętowanym przez producenta.
Bezpieczny proces płatności
Zasady zwrotu i refundacji
Zasady wysyłki
Gwarancja
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Not compliant
Environmental
- Product Certifications
- UL listed file E78351 CCN NLDX || CSA
- Nema Degree Of Protection
- not rated (open device)
Complementary
- Height
- 312.67 mm
- Auxiliary Contact Composition
- without
- Nema Size
- 5
- [Uc] Control Circuit Voltage
- 480 V AC 60 Hz || 440 V AC 50 Hz
- Rated Power In Hp
- 75 HP 200 V AC || 100 HP 230 V AC || 200 HP 460 V AC || 200 HP 575 V AC
- Product Compatibility
- circuit-breaker 400 A maximum, SCCR: 100 kA at 480 V AC || fuse J 400 A maximum, SCCR: 100 kA at 600 V AC || fuse T 400 A maximum, SCCR: 100 kA at 600 V AC || fuse RK1 400 A maximum, SCCR: 100 kA at 600 V AC || fuse RK5 400 A maximum, SCCR: 100 kA at 600 V AC
- Control Type
- no control units
- Phase
- 3 phase
- Local Signalling
- no indicator
- Poles Description
- 3P
- Electrical Connection
- screw clamp terminals
- Provided Equipment
- fuse not supplied
- Line Rated Current
- 270 A
- Control Circuit
- common control circuit
- Width
- 220.22 mm
- Depth
- 222.25 mm
- [Ue] Rated Operational Voltage
- 600 V AC
Specifications
- Range Of Product
- 8502S
- Contactor Application
- non-reversing
- Product Or Component Type
- contactor
