Beschreibung
Aktiv Reif

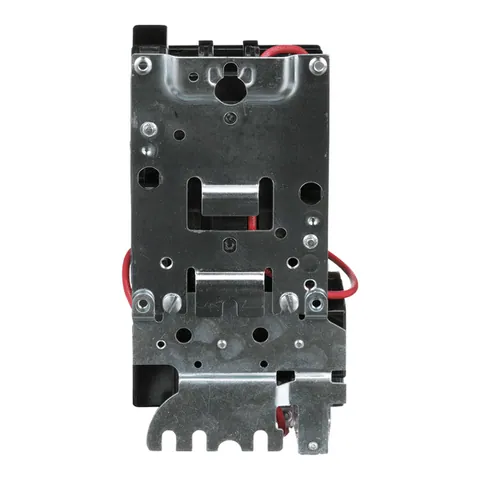

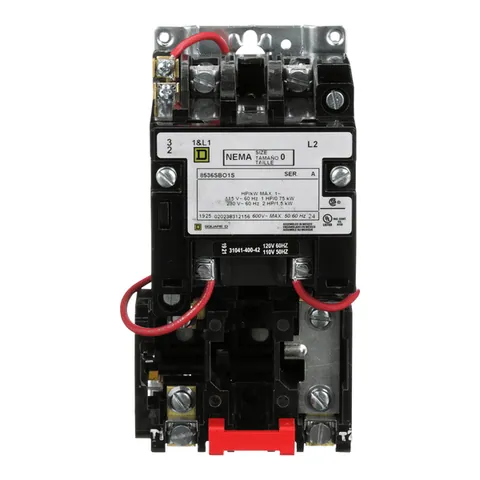

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 2 pole NEMA Size 0 non-reversing starter has an 18 ampere rating. This NEMA Size 0 motor starter has single phase ratings of 1 HP at 115 VAC and 2 HP at 230 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This NEMA starter is an open device without an enclosure. This starter is 6.77 inches tall, 3.50 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.- Country of Origin
- MX
- Part Number
- 8536SBO1V02S
- Tariff Code
- 8536504000
- EAN
- 39121521
- UPC
- 785901080343
- UNSPSC
- 39121521
- Erhalten Sie bis zu 90 Tage Zahlungsziele von 500+ Lieferanten
- Wiederverkaufsrabatte bis zu 40%!
Preisanfrage senden
1
Zahlungsmöglichkeiten:
Environment
- Product Certifications
- UL Listed || CSA || NEMA
- Nema Degree Of Protection
- not rated (open device)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Not compliant
Complementary
- Thermal Overload Type
- melting alloy 1
- Height
- 172 mm
- Auxiliary Contact Composition
- without
- Nema Size
- 0
- [Uc] Control Circuit Voltage
- 110 V AC 50 Hz || 120 V AC 60 Hz
- Rated Power In Hp
- 1 HP 115 V AC || 2 HP 230 V AC
- Control Type
- no control units
- Phase
- 1 phase
- Local Signalling
- without pilot light
- Poles Description
- 2P
- Electrical Connection
- screw clamp terminals
- Line Rated Current
- 18 A
- Control Circuit
- separate control circuit
- Width
- 89 mm
- Depth
- 107 mm
- [Ue] Rated Operational Voltage
- 600 V AC
Specifications
- Range Of Product
- S
- Product Or Component Type
- motor starter
- Motor Starter Type
- non reversing
