Schneider Electric
8536SCO3V02H30S

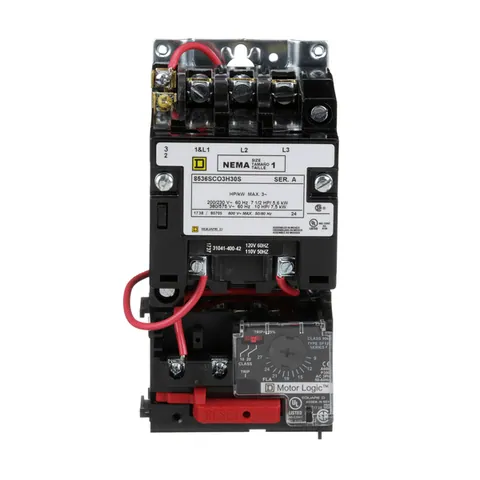

NEMA motor starter, Type S, nonreversing, Size 1, 27A, 10 HP at 460VAC, up to 100kA SCCR, 3 phase, 3 pole, Motor Logic, 120VAC coil, open
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
$525.00
1
Payment methods:
A total of 2 Parts In-Stock from 1 Distributor
Product Conditions:
Additional Information
- Part Number
- 8536SCO3V02H30S
- UPC
- 785901807056
- UNSPSC
- 39121521
- Tariff Code
- 8536504000
- Country of Origin
- MX
Environment
- Product Certifications
- UL Listed || CSA || NEMA
- Nema Degree Of Protection
- not rated (open device)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Pvc Free
- Yes
- Eu Rohs Directive
- Not compliant
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Complementary
- Local Signalling
- without pilot light
- Thermal Overload Type
- solid state Motor Logic class 10/20
- Height
- 172 mm
- Auxiliary Contact Composition
- without
- Nema Size
- 1
- [Uc] Control Circuit Voltage
- 110 V AC 50 Hz || 120 V AC 60 Hz
- Poles Description
- 3P
- Rated Power In Hp
- 7.5 HP 200 V AC || 7.5 HP 230 V AC || 10 HP 460 V AC || 10 HP 575 V AC
- Electrical Connection
- screw clamp terminals
- Line Rated Current
- 27 A
- Control Type
- no control units
- Control Circuit
- separate control circuit
- Width
- 89 mm
- Depth
- 107 mm
- Phase
- 3 phase
- [Ue] Rated Operational Voltage
- 600 V AC
Specifications
- Motor Starter Type
- non reversing
- Range Of Product
- S
- Product Or Component Type
- motor starter
Documents
Data Sheet
