Schneider Electric
8910DP42V02
1 / 5
Opis
Końcówka Serii

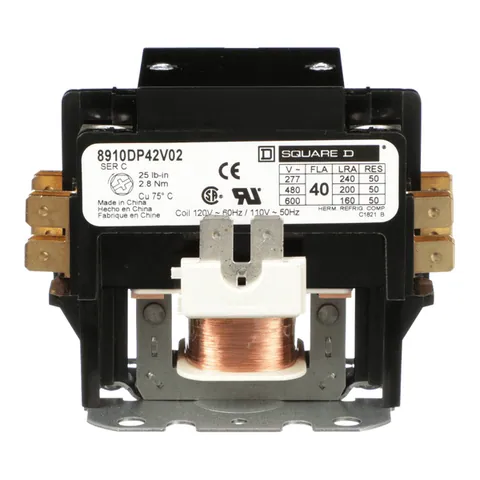

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This one pole definite purpose contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes at 277 V maximum. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 2.00 inches by 3.32 inches and 2.45 tall. These contactors are UL Listed and CSA Certified.- Country of Origin
- CN
- Part Number
- 8910DP42V02
- Tariff Code
- 8536490065
- EAN
- 39121529
- UPC
- 785901024187
- UNSPSC
- 39121529
- Termin płatności do 90 dni od 500+ dostawców.
- Rabaty na odsprzedaż do 40%!
Wyślij zapytanie o cenę
1
Metody płatności:
Environment
- Product Certifications
- UL Recognized || CSA
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Compliant with Exemptions
Complementary
- [Uc] Control Circuit Voltage
- 120 V AC 60 Hz || 110 V AC 50 Hz
- Locked Rotor Rated Current
- 240 A 277 V AC || 200 A 460 V AC || 160 A 575 V AC
- Maximum Horse Power Rating
- 2-2 hp 115 V AC, 1 phase || 5-5 hp 230 V AC, 1 phase
- Phase
- 1 phase
- Electrical Connection
- box lugs || quick connect terminals
- [Ue] Rated Operational Voltage
- 600 V AC
Specifications
- Range Of Product
- DP
- Product Or Component Type
- Definite Purpose Contactor
- Pole Contact Composition
- 2 NO
- Poles Description
- 2P
- Line Rated Current
- 40 A
