Schneider Electric
8911DPSO32V09
1 / 5
Beschreibung
Aktiv Reif

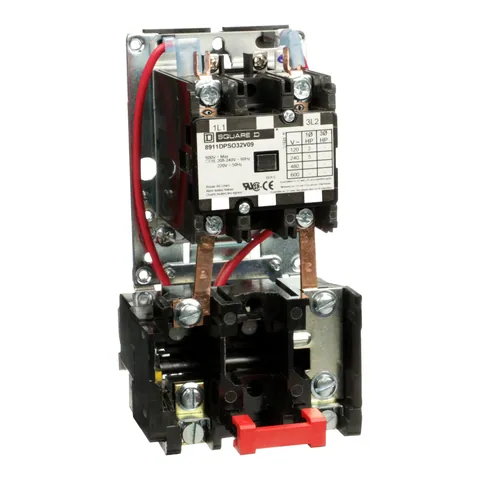

8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This two pole definite purpose starter has a full load rating of 30 amperes. This starter has ratings of 2 HP at 115 VAC and 5 HP at 230 VAC single phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz 220 VAC 50 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. This starter doesn't have an enclosure. Enclosures are available. Starter is 7.0 inches tall, 3.5 inches wide and 4.0 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.- Country of Origin
- CN
- Part Number
- 8911DPSO32V09
- Tariff Code
- 8536504000
- EAN
- 39121521
- UPC
- 785901025160
- UNSPSC
- 39121521
- Erhalten Sie bis zu 90 Tage Zahlungsziele von 500+ Lieferanten
- Wiederverkaufsrabatte bis zu 40%!
Preisanfrage senden
1
Zahlungsmöglichkeiten:
Complementary
- Thermal Overload Type
- melting alloy
- Nema Degree Of Protection
- not rated (open device)
- Range Of Product
- DPS
- Number Of Thermal Units Required
- 1
- Locked Rotor Rated Current
- 180 A 230 V AC || 150 A 460 V AC || 120 A 575 V AC
- Poles Description
- 2P
Specifications
- [Uc] Control Circuit Voltage
- 220 V AC 50 Hz || 208...240 V AC 60 Hz
- Maximum Horse Power Rating
- 2-2 hp 115 V AC, 1 phase || 5-5 hp 230 V AC, 1 phase
- Line Rated Current
- 30 A
- Product Or Component Type
- Definite Purpose Starter
- Phase
- 1 phase
- [Ue] Rated Operational Voltage
- 600 V AC
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant with Exemptions
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Contractual warranty
- Warranty
- 18 months
