Schneider Electric
9050JCK70V24
1 / 5
Description
Active Mature

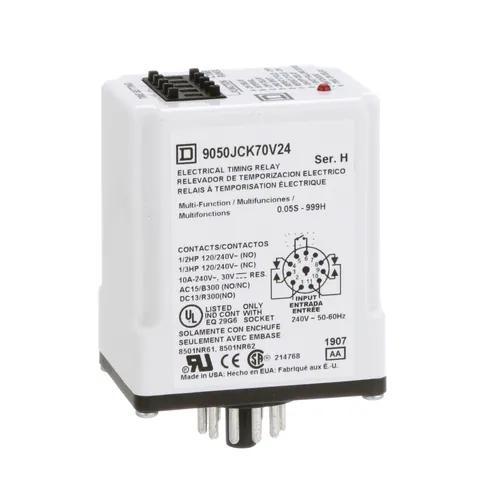

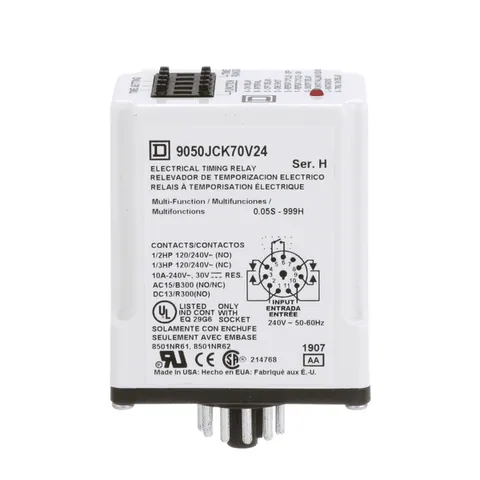

9050JCK plug in timers are designed to provide low cost timing in a plug in housing. This timer can be programed to have an on delay, off delay, interval, one shot, repeat cycle off, repeat cycle on, on/off delay, one shot falling edge, watchdog or trigger on delay timing mode. The timing range of 0.5 seconds to 999 hours is easily adjustable with thumb wheels on the top of the timer. This plug in timer plugs into an 8501NR61 or 8501NR62 relay socket. These relay sockets can be mounted on 35 mm DIN 3 mounting track or directly to a panel. All wiring is made to the relay socket. The DPDT contacts are rated 10 amperes resistive at 120 VAC, 240 VAC and 30 VDC, 3 amperes inductive at 120 VAC, 240 VAC and 30 VDC, 1/3 HP on the NC contacts at 120 VAC and 240 VAC, 1/2 HP on the NO contacts at 120 VAC and 240 VAC. This plug in timer is powered up with 240 VAC 50/60 Hz. 9050JCK plug in timers are UL listed when the proper 8501NR relay socket is used, UL component recognized and CSA certified.- Country of Origin
- US
- Part Number
- 9050JCK70V24
- Tariff Code
- 8536490080
- EAN
- 39122329
- UPC
- 785901132707
- UNSPSC
- 39122329
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
Send request for price
1
Payment methods:
Environment
- Product Certifications
- UL Listed || UL Recognized || CE
- Ambient Air Temperature For Operation
- -18-122 °F
- Height
- 60 mm
- Width
- 44 mm
- Depth
- 91 mm
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1406037EN
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1406037EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Mounting Support
- socket
- Contacts Material
- silver nickel
- Hold-In Power Consumption In Va
- 3.2-3.2 VA
- Shape Of Pin
- tubular
- Maximum Switching Voltage
- 240 V AC
- Contacts Type And Composition
- 2 NO + 2 NC
- Line Rated Current
- 10 A
- Switch Function
- DPDT
- Product Compatibility
- 8501NR61 || 8501NR62
- Pin Number
- 11
Specifications
- [Uc] Control Circuit Voltage
- 240 V AC
- Range Of Product
- 9050JCK
- Product Or Component Type
- timer
- Time Delay Range
- 0.1...99.9 min || 0.05...9.99 s || 1...999 s || 0.1...99.9 h || 0.1...99.9 s || 1...999 h
- Time Delay Type
- off-delay || trigger on-delay || one shot falling edge || one shot || on-delay and off-delay || watchdog || on-delay || repeat cycle || interval
