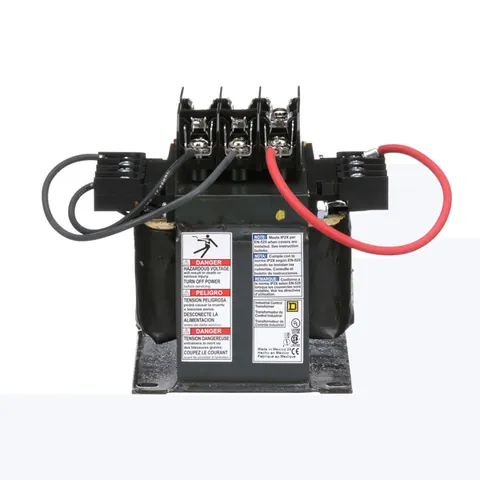

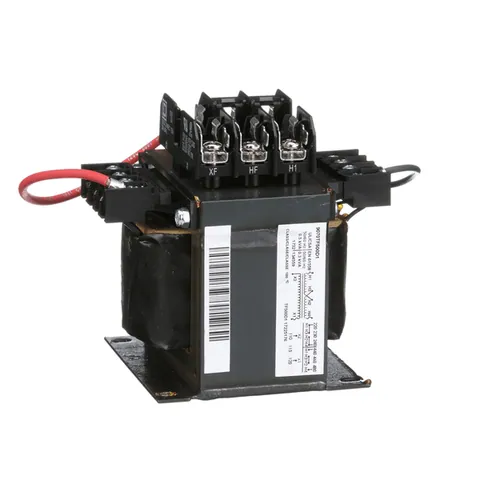

Schneider Electric 9070TF500D1

Designed for reliable control circuit power distribution, this industrial transformer offers robust performance and design flexibility. The unit features low impedance windings to ensure stable voltage regulation even during high inrush current events commonly associated with contactors, starters, solenoids, and relays.

The Type TF configuration incorporates three pre-wired fuse blocks – two primary and one secondary – simplifying overcurrent protection integration for panel builders and machinery OEMs. Maintaining a consistent footprint with the Type T series, this design optimizes space utilization within control panels.

This 500VA single-phase transformer operates on a primary voltage of 240x480V and provides a secondary output of 120V. It is engineered to meet UL, CSA, and CE standards for safety and performance. The unit utilizes CC fuses with dimensions of 0.41 x 1.50 inches, mounted directly on the transformer.

Key Specifications:

• Power Rating: 500 VA
• Phase: Single-Phase (UL)
• Primary Voltage: 240 x 480V
• Secondary Voltage: 120V
• Frequency: 50/60 Hz
• Fuse Type: CC, 0.41 x 1.50 in
• Temperature Rise: 115 °C
• Dimensions: 5.13 in (H) x 4.5 in (W) x 5.49 in (D)
• Winding Material: Copper
