Schneider Electric 9080GCB30

Name: Circuit protector, Linergy, thermal magnetic overcurrent, track mount, 3.0A, 250VAC, 65VDC
Brand: Schneider Electric
SKU: 9080GCB30

Circuit protector, Linergy, thermal magnetic overcurrent, track mount, 3.0A, 250VAC, 65VDC

1 / 5

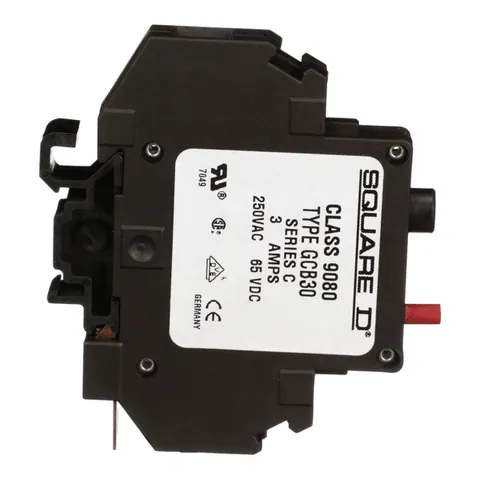

Manufacturer catalogue image

Product Description

Lifecycle Status:

Linergy thermal magnetic circuit protectors are a trip free device. These circuit protectors cab be mounted on 35 mm DIN track or Square D terminal block track. The family has circuit protectors with current ratings from 0.1 to 15 A. This circuit protector has a current rating of 3.0 amperes. The thermal feature trips when there is an overload of ten times rated current or less. The magnetic mechanism trips instantaneously when there is a short circuit. Maximum rating of 200 A, but not exceeding 10,000% (100 times) rated current.

Send Inquiry

Payment methods:

Offer details

Best offer from:: Trusted supplier — United Kingdom, member since 2026, 20–49 employees
Availability:: 1 pc.
In-Stock
Updated at: 07-11-2025
Condition:: Refurbished

Refurbished - A refurbished item inspected, cleaned, and repaired to full working order by either the manufacturer or a certified technician. The item is in excellent condition and fully operational.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: Schneider Electric
Product Certifications: CE || UL recognized E233026 CCN QVNU2 || CSA file 025490 class 3211 07
Standards: UL 1077 || CSA C22.2 No 235 || DIN 57470
Warranty: 18 months
Rohs Exemption Information: Yes
Mercury Free: Yes
Reach Regulation: Free of Substances of Very High Concern above the threshold
