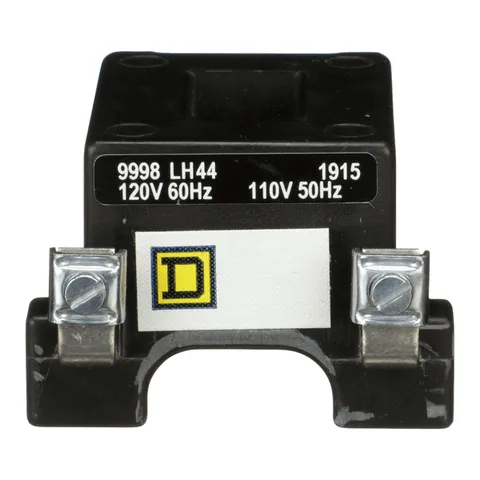

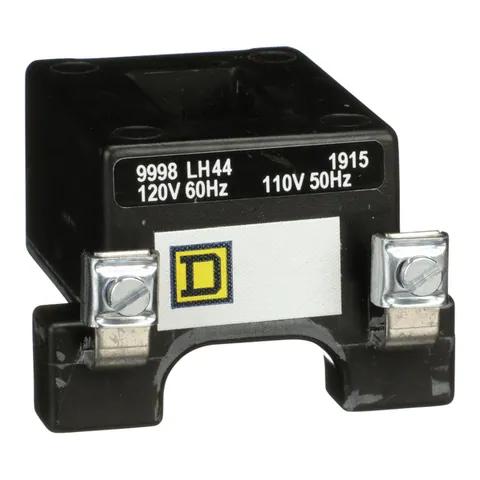

Schneider Electric 9998LH44

Name: Contactor, Type L, multipole lighting, replacement coil, 110/120VAC 50/60Hz, 8 to 12 poles
Brand: Schneider Electric
SKU: 9998LH44

Contactor, Type L, multipole lighting, replacement coil, 110/120VAC 50/60Hz, 8 to 12 poles

1 / 5

Manufacturer catalogue image

Product Description

Lifecycle Status:

8903L multipole lighting contactors are for lighting control applications. Contactors can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The coil can be easily replaced in a 8903 L lighting contactor. By changing out the coil, the lighting contactor can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor if the coil were to fail. This coil is used in an 8903L, 8 to 12 poles, and 8930LX, 6 to 12 poles, lighting contactors. The coil is rated for 110/120 VAC 50/60 Hz. The inrush power of this coil is 180 VA. It has an average sealed consumption of 35 VA. This coil has a height of 2.38 inches, a width of 2.11 inches and a depth of 1.46 inches. Coil is fully encapsulated to protect it. Coil has screw clamp connections. Coil has screw clamp connections.

Send Inquiry

Payment methods:

Offer details

Best offer from:: Trusted supplier — United Kingdom, member since 2026, 20–49 employees
Availability:: 1 pc.
In-Stock
Updated at: 07-11-2025
Condition:: New Surplus

New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: Schneider Electric
Average Consumption: 35 VA
[Ue] Rated Operational Voltage: 120 V AC 60 Hz || 110 V AC 50 Hz
Inrush Power In Va: 170 VA || 180 VA
Accessory / Separate Part Destination: class 8903 contactor
Product Or Component Type: coil
China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
