Schneider Electric A9MEM3200

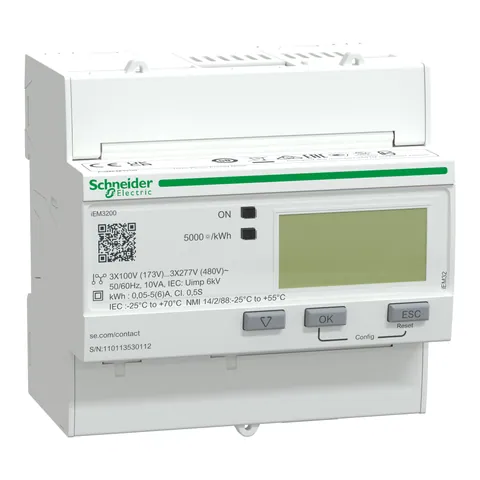

The iEM3200 energy meter, part of the Acti9 iEM3000 series, is engineered for three-phase applications and can be mounted on a DIN rail. This device features an LCD display for clear readouts, alongside local signaling elements including a green LED power indicator and a yellow LED for accuracy verification.

It operates effectively in both sub-billing and partial metering scenarios, adhering to accuracy classes of class 0.5S for active energy according to IEC 62053-22 and IEC 61557-12. The meter is compatible with network frequencies of 50Hz and 60Hz and can handle supply voltages ranging from 100 to 277VAC or 173 to 480VAC.

It supports current measurement via 1A or 5A transformers, accommodating various configurations such as Single Phase and Neutral, and Three Phase and Three Phase and Neutral. The communication protocol in use is Modbus, with connections facilitated through screw terminals.

With dimensions of 90 mm wide, 69 mm deep, and 95 mm high, and a weight of 260 g, the iEM3200 is suited for diverse operational environments. It has been certified under multiple standards including EAC, CE, and UL, ensuring compliance with safety and performance regulations.

This meter's ambient operating temperature ranges from -25 to 70 °C, and it maintains functionality at altitudes below 2000 m. The device is designed to withstand a pollution degree of 2 and is packaged to meet environmental standards, reflecting its Green Premium status.
