Schneider Electric
A9MEM3465

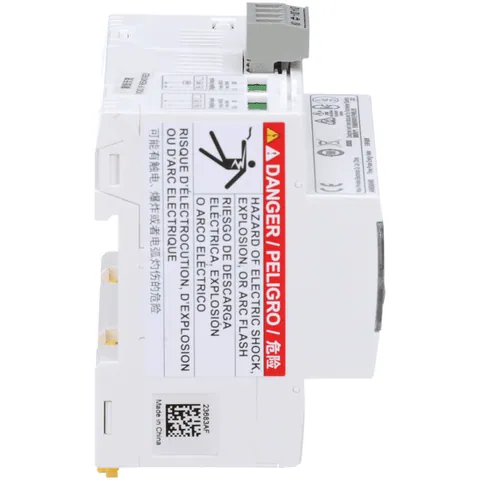

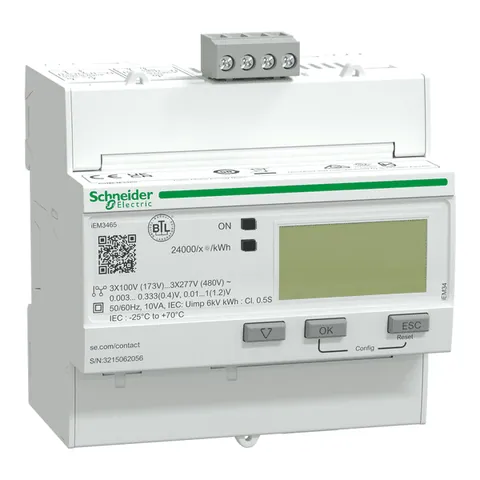

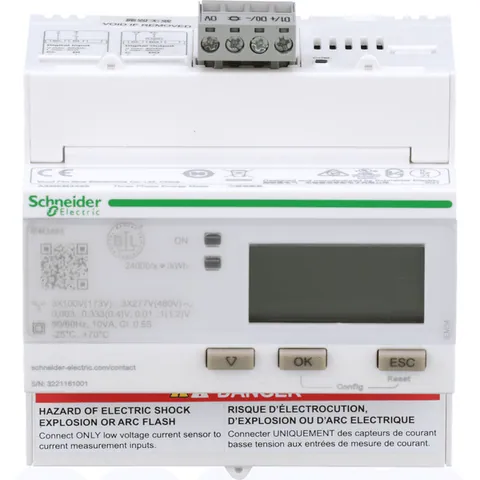

iEM3465 energy meter - BACnet - 1 DI - 1 DO - multi-tariff - LVCT
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
Send request for price
1
Payment methods:
A total of 2 Parts In-Stock from 10 Distributors
Product Conditions:
Offer with manufacturer lead time
Ships in:On Request
Best price:
€233.06
Additional Information
- Part Number
- A9MEM3465
- UNSPSC
- 39121117
- Tariff Code
- 9028300000
- Country of Origin
- CN
Complementary
- Network Frequency
- 60 Hz || 50 Hz
- Communication Port Support
- screw terminal block RS485
- Output Voltage
- 5...40 V DC@50 mA
- Sampling Rate
- 32 samples/cycle
- Number Of Outputs
- 1 digital (static)
- Mounting Support
- DIN rail
- Maximum Value Measured
- 99999999.9 kWh || 99999999 MWh
- Standards
- BS EN 61326-1 || IEC 61326-1 || EN 61326-1 || BS EN 61010-1:2010 || EN 61010-1:2010 || IEC 61010-1:2010 || UL 61010-1:2010 || BS EN 61010-2-30 || IEC 61010-2-30 || EN 61010-2-30 || UL 61010-2-30 || ANSI C12.20
- Type Of Measurement
- active and reactive energy || active and reactive power || current || voltage
- Communication Port Protocol
- BACnet 9.6, 19.2, 38.4, 57.6, 76.8 kbauds
- Product Certifications
- CE IEC 61010-1 safety) || CE EN 61557-12 power monitor) || CE EN/IEC 61326-1 EMC) || UKCA BS EN 61010-1 safety) || UKCA BS EN 61557-12 power monitor) || UKCA BS EN 61326-1 EMC) || cULus UL 61010-1 safety) || cULus EN 61010-1 safety) || KZ || RCM
- Number Of Inputs
- 1 digital 0...5 V/11...40 V 24 V DC
- Measurement Current
- 1-32767000 mA
- Wire Stripping Length
- input/output circuit: 6 mm || voltage circuit: 8 mm || current circuit: 8 mm || communication: 7 mm
- Connections - Terminals
- current circuit screw terminals 6-6 mm² || voltage circuit screw terminals 2.5-2.5 mm² || input/output circuit screw terminals 1.5-1.5 mm² || communication screw terminals 2.5-2.5 mm²
- Information Displayed
- tariff 4)
- Mounting Mode
- clip-on
- Local Signalling
- Green indicator light power ON || Yellow flashing LED accuracy checking || alarm overload
- Technology Type
- electronic
- Poles Description
- 3P || 1P + N || 3P + N
- Analogue Input Type
- split core current transducer 0.333 V or 1 V
- Display Type
- LCD display
- Tightening Torque
- input/output circuit 0.5-0.5 N.m Philips || voltage circuit 0.5-0.5 N.m Philips || current circuit 0.8-0.8 N.m pozidriv || communication 0.5-0.5 N.m Philips
- Device Application
- sub billing || multi-tariff || partial meter
- Metering Type
- active, reactive, apparent energy (signed, four quadrant)
- Accuracy Class
- class 0.5S active energy IEC 62053-22 || class 0.5S active energy ANSI C12.20
- Rated Voltage
- 100-277 V +/- 20 % || 173-480 V +/- 20 %
Specifications
- Product Or Component Type
- energy meter
- Product Name
- Acti9 iEM3000
- Range
- Acti9
- Device Short Name
- iEM3465
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP111276EN
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI111261EN_V1
- Eu Rohs Directive
- Compliant with Exemptions
Environment
- Ik Degree Of Protection
- IK08
- Height
- 87 mm
- Ambient Air Temperature For Operation
- -25-70 °C - IEC
- Pollution Degree
- 2
- 9 Mm Pitches
- 10
- Color
- White
- Ambient Air Temperature For Storage
- -40-85 °C
- Relative Humidity
- 5-95 % 36-36 °C
- Ip Degree Of Protection
- front panel IP40 IEC 60529 || body IP20 IEC 60529
- Width
- 90 mm
- Depth
- 69 mm
- Operating Altitude
- < 9842.52 ft (3000 m)
