Schneider Electric ABE7CPA412

Name: connection sub-base ABE7 for 4 thermocouples distribution
Brand: Schneider Electric
SKU: ABE7CPA412

connection sub-base ABE7 for 4 thermocouples distribution

1 / 6

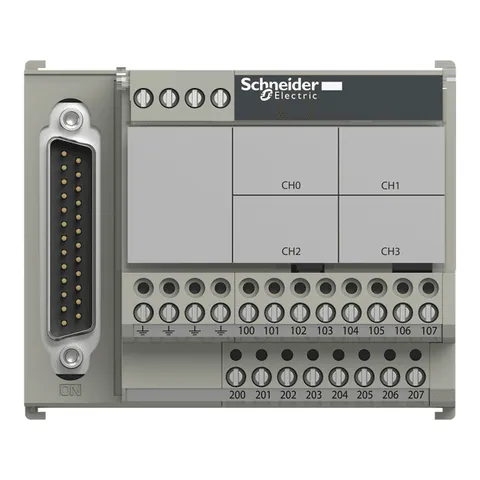

Manufacturer catalogue image

Product Description

Lifecycle Status:

This connection sub-base, designated as ABE7, is engineered for distributing power to four thermocouples. It effectively manages isolated sensor power supplies using a converter while providing cold-junction compensation for the thermocouple inputs. The product is equipped with screw-type terminals, allowing for connections with a 25-way SUB-D interface to Programmable Logic Controllers (PLC).

Rated IP20, it is suitable for a variety of industrial applications and operates within an ambient temperature range of 0 to 60 °C. The device weighs 0.18 kg and can be mounted using clips on a 35 mm symmetrical DIN rail or via screws with a solid plate fixing kit. It is compatible with Modicon M340 BMXART0414 and BMXART0814 analog input modules.

This sub-base meets several certification standards, including GL, CSA, UL, and DNV, ensuring its reliability in various environments. Its design allows for efficient wiring rationalization in automation systems.

Send Inquiry

Payment methods:

Offer details

Best offer from:: Trusted supplier — Romania, member since 2023, 1–4 employees
Availability:: 1 pc.
On Request
Updated at: 22-08-2026
Condition:: New Surplus

New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: Schneider Electric
Product Certifications: GL || CSA || UL || DNV
Resistance To Radiated Fields: 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
Ambient Air Temperature For Operation: 0-60 °C IEC 61131-2
Shock Resistance: 15 gn 11 ms IEC 60068-2-27
Vibration Resistance: 2 gn 10-150 Hz)IEC 60068-2-6
Ip Degree Of Protection: IP20 conforming to IEC 60529
