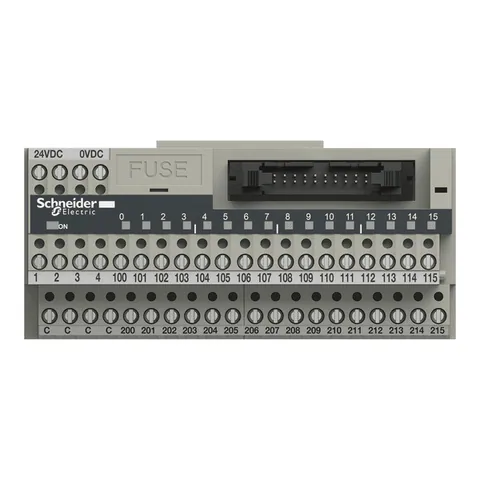

Schneider Electric ABE7H16C21
passive connection sub-base ABE7 - 16 inputs or outputs - Led
1 / 5
Manufacturer catalogue image
Manufacturer catalogue image
Manufacturer catalogue image
Manufacturer catalogue image
Manufacturer catalogue image
Product Description
Lifecycle Status:
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This miniature passive connection sub-base provides 16 modularity input/output channels. It has 2 terminals per channel. It is a sub base with a maximum supply current of 1.8A and a rated supply voltage of 19V to 30V. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. It weighs 0.205kg. It is suitable for all types of industrial applications. This product is certified by GL, BV, CSA, UL, DNV and LROS. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — Germany, member since 2024- Availability:
- 36 pcs.On RequestUpdated at: 04-09-2026
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Schneider Electric
- Product Certifications
- GL || DNV || CSA || UL || EAC
- Resistance To Radiated Fields
- 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
- Ambient Air Temperature For Operation
- -5-60 °C IEC 61131-2
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Vibration Resistance
- 2 gn 10-150 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP2X conforming to IEC 60529
