Schneider Electric ABL8WPS24200

Name: Regulated switch power supply, modicon power supply, 3 phases, 380 to 500V AC, 24V, 20A
Brand: Schneider Electric
SKU: ABL8WPS24200

Regulated switch power supply, modicon power supply, 3 phases, 380 to 500V AC, 24V, 20A

1 / 5

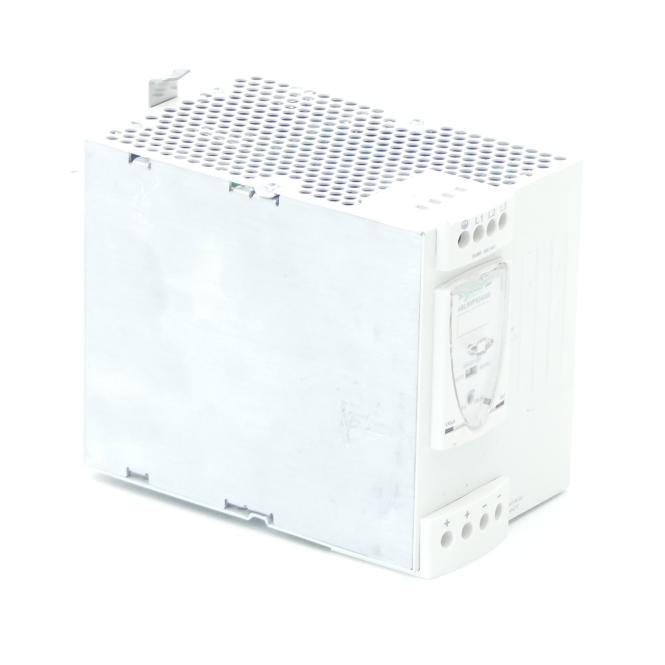

Manufacturer catalogue image

Product Description

Lifecycle Status:

The Schneider Electric ABL8WPS24200 is a high-quality regulated switch mode power supply (SMPS) that delivers direct current voltage. It features a robust design with a rated input of 380V to 500V AC, a rated output current of 20A at 24V DC and a rated power output of 480W. This power supply is ideal for supplying the DC voltage necessary for automation equipment in various industrial, commercial, and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas, and water.

The ABL8WPS24200 offers automatic reset functionality, allowing it to clear short-term faults and restart systems without the need for on-duty maintenance engineers. It also features an LED diagnostics indicator located in the front for easy troubleshooting. The power supply provides a power reserve, enabling it to deliver a current of 150% its nominal rating for a short time, allowing handling of simultaneous inrush current when starting a process.

The ABL8WPS24200 is easy to install on DIN rail and measures 95mm in width. It conforms to CSA C22.2 No 60950-1 and UL 508, and it is certified with CCSAus, EAC, UL, and RCM. For protection, the GV2ME06 thermal magnetic circuit breaker is recommended. The LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. This power supply brings energy to your automated systems.

Designed for simple machines and applications, modular power supplies like the ABL8WPS24200 are appreciated for...

Send Inquiry

Payment methods:

Offer details

Best offer from:: Trusted supplier — United Kingdom, member since 2021
Availability:: 1 pc.
In-Stock
Updated at: 31-10-2025
Condition:: New Factory Sealed

New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: Schneider Electric
Standards: CSA C22.2 No 60950-1 || UL 508 || EN/IEC 62368-1
Ambient Air Temperature For Operation: 50-60 °C with derating factor mounting position A < 6561.68 ft (2000 m) || -25-50 °C without derating mounting position A < 6561.68 ft (2000 m)
Product Certifications: cCSAus || EAC || UL || RCM
Environmental Characteristic: EMC IEC 61000-6-1 || EMC IEC 61000-6-3 || EMC EN 55024 || EMC IEC 61000-6-4 || EMC EN/IEC 61204-3 || safety EN 61204-4 || safety IEC 60950-1
Ip Degree Of Protection: IP20 conforming to IEC 60529
Operating Altitude: 6561.68 ft (2000 m)
