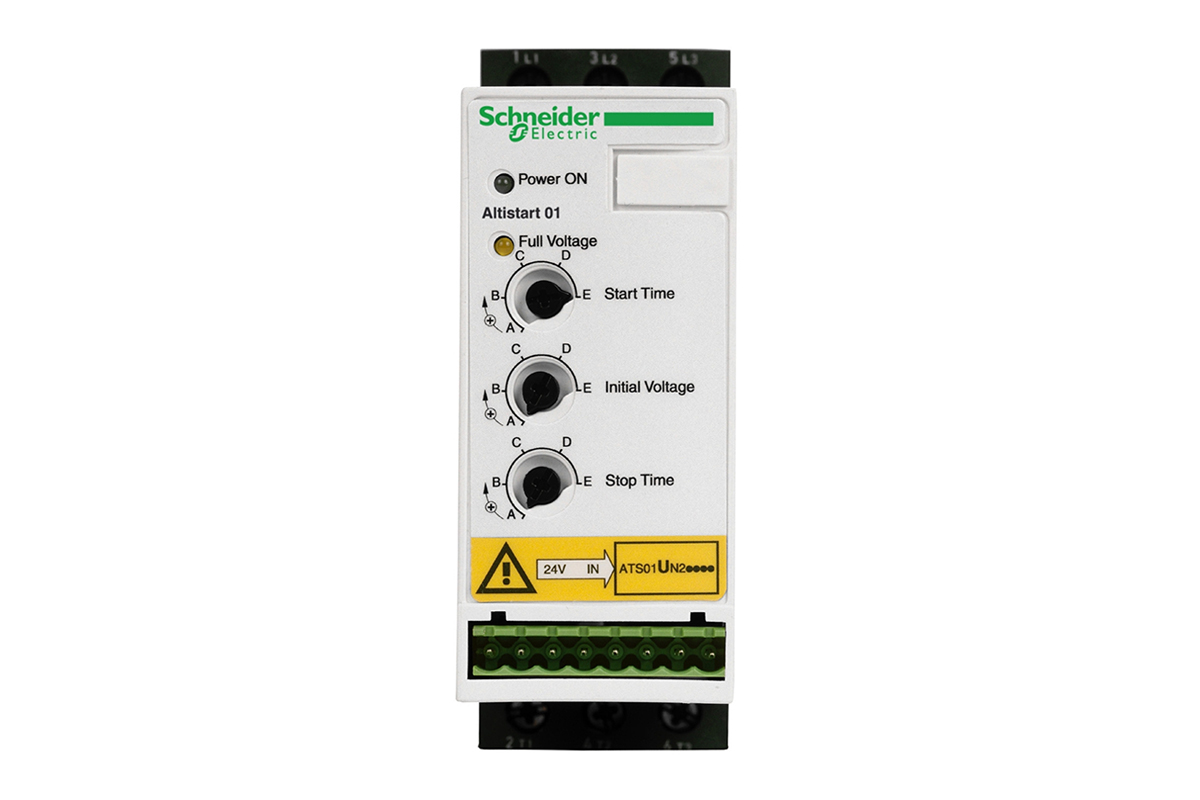

Schneider Electric ATSU01N206LT
soft starter for asynchronous motor, Altistart U01, TeSys U, ATSU01, 6A, 200 to 480V, 0.75 to 3kW
Product Description
Introducing the Schneider Electric Altistart U01, a state-of-the-art soft starter/soft stop unit tailored for 3-phase asynchronous motors. This compact device is primarily designed to be used in conjunction with TeSys U starter-controllers.
The Altistart U01 boasts a robust design, capable of handling motor rated power up to 3kW or 3hp for 3-phase (200V to 480V AC) and up to 6A rating. Its sleek dimensions of 45mm width make it one of the smallest soft starters on the market, ensuring easy installation in a variety of spaces.
Equipped with an integrated bypass feature, this starter reduces noise levels and minimizes heat dissipation, enhancing its overall performance. The Altistart U01 features a protection index of IP20 and weighs just 0.34kg, with dimensions of 45mm wide, 234mm high, and 150mm deep.
This versatile soft starter is suitable for a range of applications including conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes, and belt-driven machinery. It adheres to the IEC/EN 60947-4-2 standard and carries UL, CSA, C-Tick, and CCC certifications, as well as CE marking.
Easy to install on a DIN rail, the Altistart U01 combines simplicity with efficient cabling and fast configuration. Its seamless integration with TeSys Model U provides a unique motor starter solution, optimizing operations by reducing machine wear and minimizing maintenance time.
Need more information?
Offer details
- Offer from:
Trusted supplier — Romania, member since 2023, 1–4 employees - Availability:
- On requestLead time: 21 days
- Warranty:
- Not specified
- Condition:
- New Surplus
Specifications
- Brand
- Schneider Electric
- Product Certifications
- CCC || UL || C-tick || CSA
- Standards
- EN/IEC 60947-4-2
- Electromagnetic Compatibility
- conducted and radiated emissions level B CISPR 11 || conducted and radiated emissions level B IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-2 || EMC immunity EN 50082-1 || EMC immunity level B EN 50082-2 || harmonics level 3 IEC 1000-3-2 || harmonics level 3 IEC 1000-3-4 || immunity to electrical transients level 4 IEC 61000-4-4 || immunity to radiated radio-electrical interference level 3 IEC 61000-4-3 || voltage/current impulse level 3 IEC 61000-4-5 || conducted and radiated emissions level 3 IEC 61000-4-6 || immunity to conducted interference caused by radio-electrical fields level 4 IEC 61000-4-11
- Ambient Air Temperature For Operation
- -10-40 °C without derating) || 40-50 °C with current derating of 2 % per °C)
- Shock Resistance
- 15 gn 11 ms EN/IEC 60068-2-27
- Vibration Resistance
- 1 gn 13-150 Hz)EN/IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)EN/IEC 60068-2-6
Available Offers
(4)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
| Condition New Surplus | Availability On requestLead time: 21 days | SupplierRomaniaTrusted supplier — member since 2023, 1–4 employees | Warranty Not specified | |
 | Condition New Surplus | Availability On requestLead time: 21 days | Supplier NetherlandsTrusted supplier — member since 2021, 100–499 employees | Warranty 24 months | |
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier GermanyTrusted supplier — member since 2024 | Warranty Not specified | |
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier ItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Schneider Electric ATSU01N206LT, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
Product data updated: 22-08-2026
