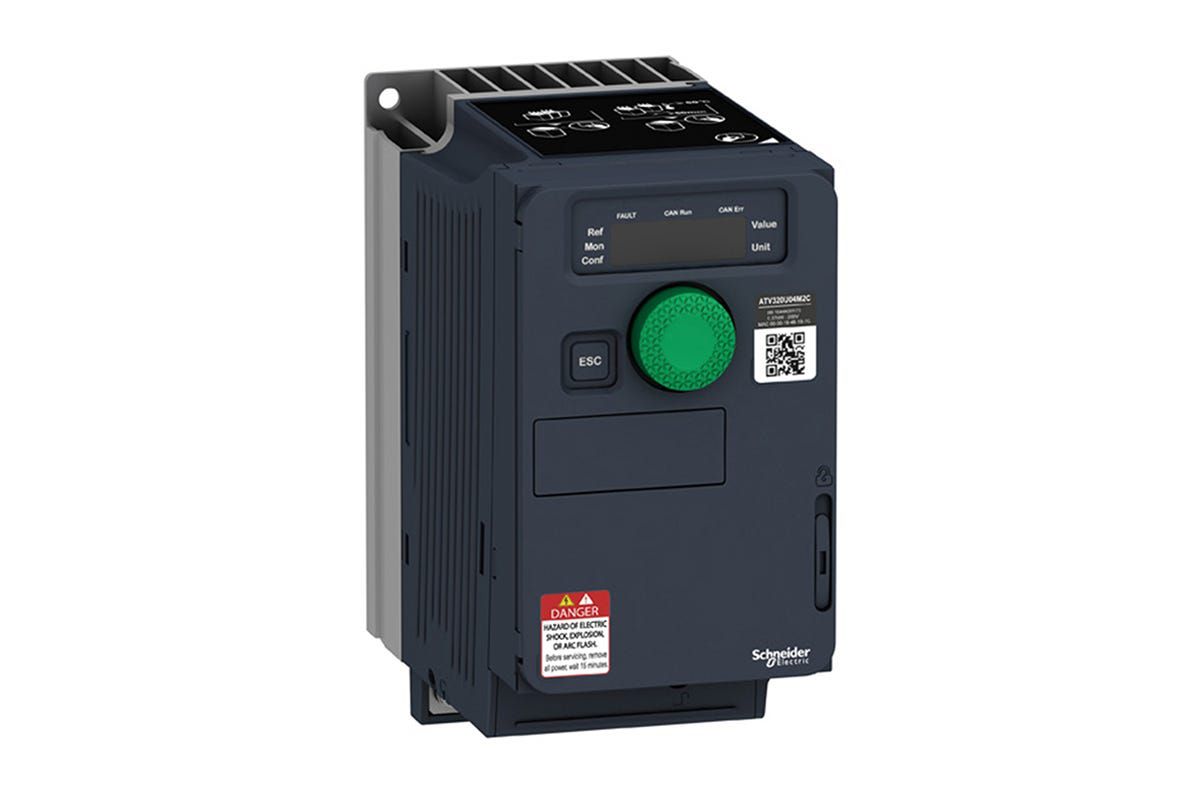

Schneider Electric ATV320U11M2C

The Altivar Machine ATV320 variable speed drive is an ideal solution for feeding single-phase synchronous and asynchronous motors. Its compact design allows for vertical stacking inside machine frames, making it a space-saving option. This robust drive operates at a rated power of up to 1.1kW / 1.5hp and can handle voltages ranging from 200V to 240V AC.

The ATV320 is designed with IEC 60721-3-3 class 3C3 coated printed circuit boards, enabling it to operate in harsh environmental conditions. For instance, it can function at ambient temperatures up to 60°C without the need for additional cooling. This drive incorporates functions suitable for a variety of applications, including torque and speed accuracy at very low speeds, high dynamic performance with flux vector control without sensors, and an extended frequency range for high-speed motors.

The ATV320 also supports parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. The drive software includes 5 safety functions that help machines meet safety requirements, whether or not they are used in conjunction with a Preventa safety module. These safety functions can be configured using SoMove software.

The Altivar Machine ATV320 is designed for Original Equipment Manufacturers (OEMs) that require simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators...
