Schneider Electric
BCPMSCC2S
1 / 1
Opis
Końcówka Serii

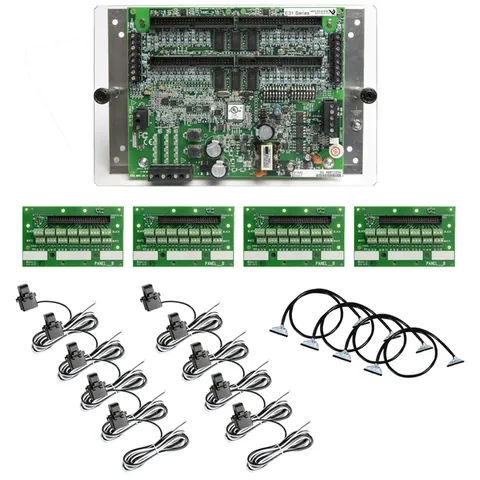

This is an integrated solution for monitoring multi-circuits and mains by using a single meter. The meter is designed for retrofit and is used for critical power operations in data centres and energy management in buildings. It offers class 1 (1 %) power and energy system accuracy (including 50A, 100A or 200A split-core current transformers) on all branch channels. The BCPM allow the monitoring of the branch circuits current only, for a maximum of 84 circuits. All to provide information on the complete Power Distribution Unit. Full alarming capabilities ensure that potential issues are dealt with before they become problems. Communication enabled with a RS485 serial port and the Modbus protocol support, more communication options with the gateway H8951. The meter need to be powered by a 90V AC to 277V AC supply source. This version is for 84 circuits, but do not include branch current transformers nor ribbon. The device dimensions are 228mm in width, 146mm in height and weight 1.5 kilograms.- Country of Origin
- US
- Part Number
- BCPMSCC2S
- Tariff Code
- 90283090
- EAN
- 3606480344152
- UNSPSC
- 83101808
Metody płatności:
- Najlepsza oferta od:
Zaufany dostawca Automa.Net- Dostępność:
- 1 szt.W magazynieZaktualizowano: 12-11-2024
- Gwarancja:
- 12 miesięcy
- Szacowany czas dostawy:
- Na zapytanie
- Stan produktu:
- Nowy, Rynek wtórny
Nowy, Rynek wtórny - Nowy, nieużywany, nieuszkodzony przedmiot bez gwarancji producenta. Przedmiot może być dostarczony bez oryginalnego opakowania lub w zastępczym opakowaniu. Jeśli dostarczono, pudełko mogło zostać otwarte.
Bezpieczny proces płatności
Zasady zwrotów i reklamacji
Zasady wysyłki
Gwarancja
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Height
- 146 mm
- Standards
- EN 61010 || IEC 61010-1
- Mounting Support
- board
- Product Certifications
- UL 508
- Net Weight
- 1.5 kg
- Mounting Mode
- clip-on
- Ambient Air Temperature For Storage
- -40-70 °C
- Relative Humidity
- 95-95 %
- Width
- 288 mm
- Operating Altitude
- 9842.52 ft (3000 m)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant with Exemptions
Complementary
- Communication Port Support
- RS485
- Measurement Voltage
- 90-277 V phase to neutral || 150-480 V phase to phase
- Sampling Rate
- 256 samples/cycle
- Communication Port Protocol
- Modbus RTU
- Communication Of Data
- high-high current alarm || low-low current alarm || high current alarm || low current alarm
- Provided Equipment
- 4 x adapter board || 0 x current transformer
- Measurement Accuracy
- current 2 % 0.25…2 A || current 1 % 2…100 A
- Update Time
- 1.8 s
- Analogue Input Type
- current 1 V || current 0.333 V84 x
Specifications
- Network Frequency
- 60 Hz || 50 Hz
- Variant
- basic
- Type Of Measurement
- current
- Power Monitoring
- basic instrumentation
- Product Or Component Type
- multi-circuit energy meter
- Product Name
- PowerLogic BCPMSC
- Range
- PowerLogic
- Energy Management
- sub billing and cost allocation
- [Us] Rated Supply Voltage
- 90...277 V AC 50/60 Hz +/- 1 %
- Device Application
- sub billing
- Device Short Name
- BCPMSCC
