Schneider Electric
BMECRA31210C

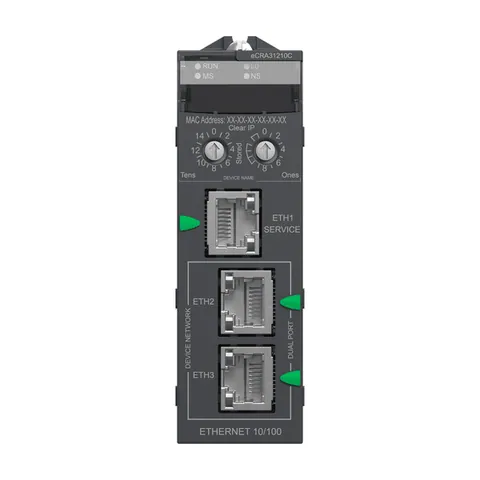

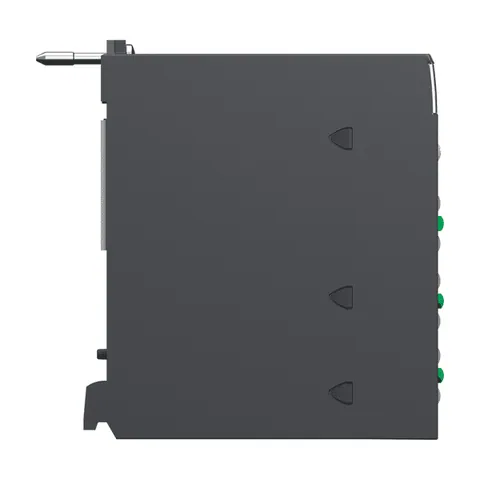

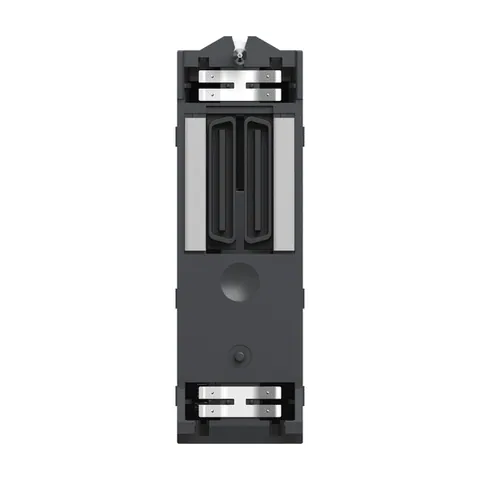

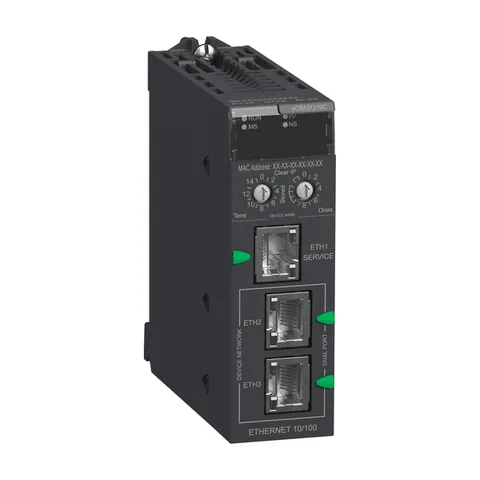

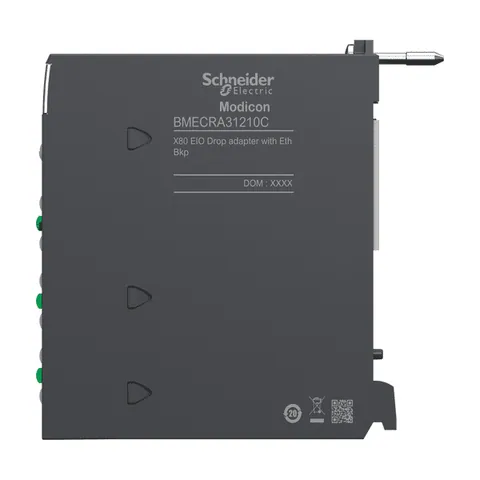

EIO drop adapter, Modicon X80, with Ethernet backplane, coated
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
$1,768.80
1
Payment methods:
A total of 2 Parts In-Stock from 13 Distributors
Product Conditions:
Offer with manufacturer lead time
Ships in:On Request
Best price:
€675.72
Additional Information
- Part Number
- BMECRA31210C
- UNSPSC
- 32151706
- Tariff Code
- 8517620090
- Country of Origin
- FR
Complementary
- Product Compatibility
- 0-1024 discrete channel || 0-256 analog channel || counter module || time-stamping module || SSI encoder interface module || motion control module || frequency input module || AS-Interface module || serial link module || fiber converter modules || HART module || weighing module || CANopen master module (standalone CPU only) || PROFIBUS module (standalone CPU only) || Ethernet switch module
- Communication Network Type
- IPv4 (internet protocol)
- Height
- 100 mm
- Fixing Mode
- by screws
- Communication Service
- Ethernet/IP adapter || RSTP (Ring topology support) || Ethernet RIO network || Quality of Service (QoS) || CIP Explicit messaging (server) || Modbus TCP server for module diagnostics || DHCP client || TFTP client || FTP client || FDR client || NTP client || SNTP client || SNMP agent
- Exchange Mode
- half duplex, full duplex, autonegotiation, auto MDIX
- Net Weight
- 0.225 kg
- Current Consumption
- 1800 mA
- Topology
- ring
- Connector Type
- 3 RJ45
- Function Available
- CCOTF (configuration change on the fly) || input data is collected and published to the remote I/O head adaptor || output modules are updated with the data received from remote I/O head adaptor || diagnostics for remote I/O devices (Device DDT) || port mirroring || system time stamping || non-interfering type 1 || I/O extension rack
- Communication Port Protocol
- EtherNet/IP
- Mounting Mode
- rack-mounted
- Number Of Port
- 3
- Integrated Connection Type
- 1 port service or distributed equipment || 2 port Ethernet RIO Network (RSTP)
- Bus Type
- bus X across the remote backplane || Ethernet across the remote backplane
- Input Voltage
- 3.3 V DC
- Relative Humidity
- 95-95 % without condensation
- Local Signalling
- for module active (RUN) 1 LED (green) || for module error (ERR) 1 LED (red) || for module status (Mod Status) 1 LED (green/red) || for network communication status (Net Status) 1 LED (green/red) || for Ethernet link diagnostics (STS) 1 LED (green)
- Data Recording
- 10 ms time stamps
- Cybersecurity
- enable/disable communication ports || Syslog protocol support
- Module Format
- standard
- Port Ethernet
- 10/100BASE-TX
- Width
- 32 mm
- Transmission Rate
- 10/100 Mbit/s
- Depth
- 87.5 mm
- Maximum Altitude Transport
- 3000 m
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Standards
- EN/IEC 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G || EN/IEC 60079-0 || UL 121201 || CSA C22.2 No 213
- Product Certifications
- CE || UL || CSA || RCM || EAC || Merchant Navy || ATEX zone 2/22 || IECEx zone 2/22 || hazardous location class 1, division 2
- Environmental Characteristic
- gas resistant class Gx ISA S71.04 || gas resistant class 3C4 IEC 60721-3-3 || dust resistant class 3S4 IEC 60721-3-3 || sand resistant class 3S4 IEC 60721-3-3 || salt resistant level 2 IEC 68252 || mold growth resistant class 3B2 IEC 60721-3-3 || fungal spore resistant class 3B2 IEC 60721-3-3
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility || 2014/34/EU - ATEX directive
- Ambient Air Temperature For Storage
- -40-85 °C
- Operating Altitude
- <= 6561.68 ft (2000 m)
- Protective Treatment
- conformal coating
- Ip Degree Of Protection
- IP20
Specifications
- Range Of Product
- Modicon X80
- Product Or Component Type
- I/O expansion module
- Product Specific Application
- for remote I/O modules
- Range Compatibility
- Modicon M580
- Device Application
- X80 Ethernet RIO drop adaptor
