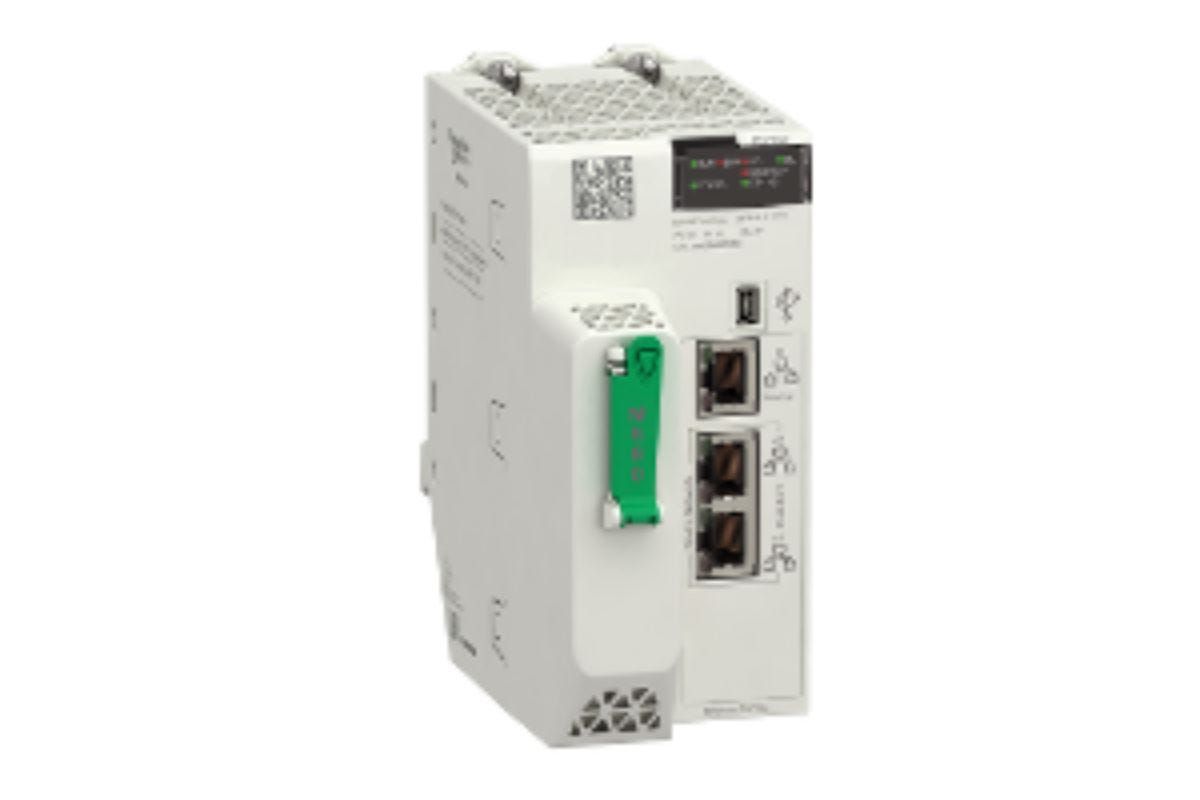

BMEP585040

Complementary

Mtbf Reliability

775000 H

Number Of Distributed Equipment

64

Communication Module Processor Capacity

8 AS-Interface module || 6 Ethernet communication module

Communication Service

DIO scanner || RIO scanner

Number Of Racks

8

Marking

CE

Current Consumption

300 mA 24 V DC

Application Structure

1 periodic fast task || 128 event tasks || 1 cyclic/periodic master task || 2 auxiliary tasks

Number Of Remote I/O Station

31 - 2 remote drop

Integrated Connection Type

1 Ethernet TCP/IP service port || 2 Ethernet TCP/IP device network || USB type mini B

Application Specific I/O

counter || SSI encoder || motion control || serial link || HART || accurate time stamping

Number Of Instructions Per Ms

40 Kinst/ms 100 % Boolean || 60 Kinst/ms 65 % Boolean + 35 % fixed arithmetic

Discrete I/O Processor Capacity

5120 I/O

Analogue I/O Processor Capacity

1280 I/O

Memory Description

expandable flash, 4 GB data storage || integrated RAM, 10 kB system memory || integrated RAM, 24 MB program || integrated RAM, 4096 kB data

Control Channels

programmable loops

Number Of Application Specific Channel

180

Checks

process control

Specifications

Range Of Product

Modicon M580

Product Or Component Type

processor module

Environment

Ambient Air Temperature For Operation

0-60 °C

Status Led

1 LED (Green) processor running (RUN) || 1 LED (Red) processor or system fault (ERR) || 1 LED (Red) I/O module fault (I/O) || 1 LED (Green) download in progress (DL) || 1 LED (Red) memory card or CPU flash fault (BACKUP) || 1 LED (green/red) ETH MS (Ethernet port configuration status) || 1 LED (green/red) Eth NS (Ethernet network status) || 1 LED (Green) I/O values overrided by user (FORCED IO)

Standards

IEC 61131-2 || IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G

Product Certifications

CE || UL || CSA || RCM || EAC || Merchant Navy

Supply

internal power supply via rack

Shock Resistance

30 gn

Environmental Characteristic

hazardous location class I division 2

Vibration Resistance

3 gn

Net Weight

0.849 kg

Directives

2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility

Ambient Air Temperature For Storage

-40-85 °C

Relative Humidity

5-95 % 55-55 °C without condensation

Operating Altitude

0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor

Ip Degree Of Protection

IP20

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP1312016EN

Sustainable Offer Status

Green Premium product

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

X

Circularity Profile

ENVEOLI1312016EN

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)
