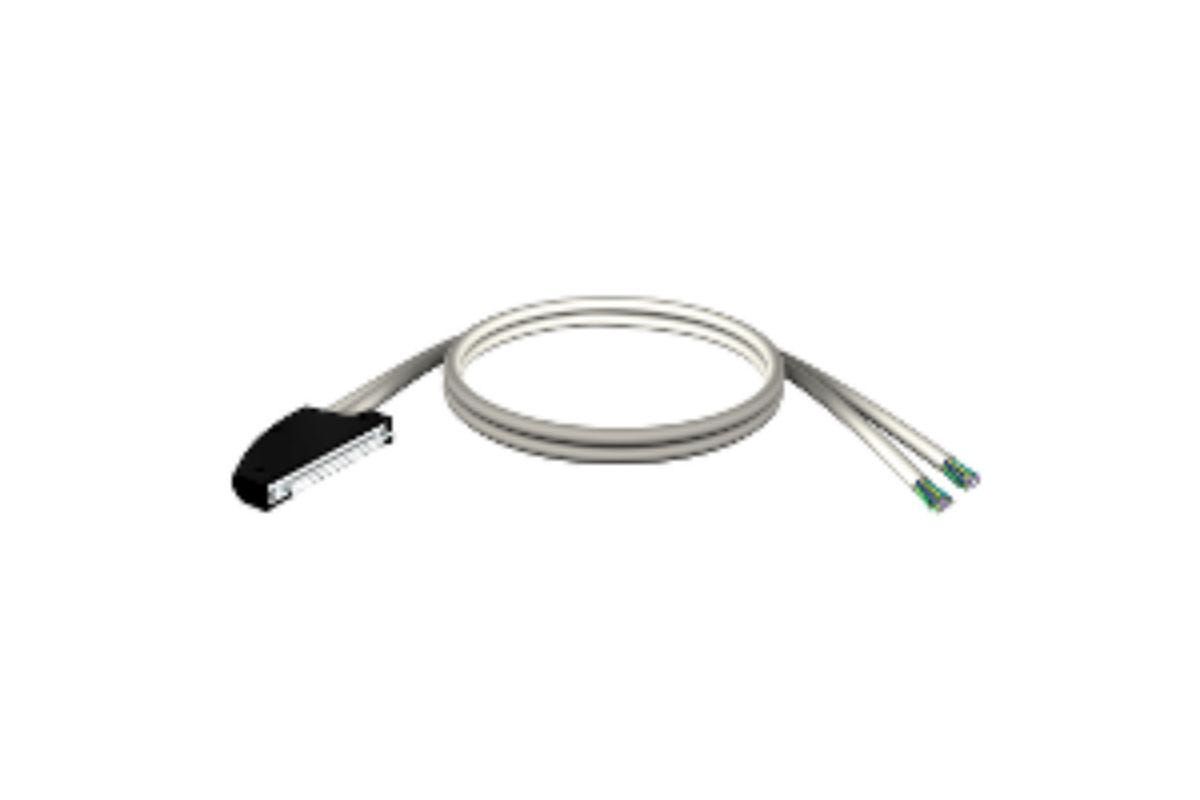

BMXFCW503

Additional Information

Part Number

BMXFCW503

UNSPSC

32151703

Tariff Code

8544429090

Country of Origin

TN

Environment

Standards

CSA C22.2 No 142 || EN/IEC 61131-2 || UL 508

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP1312019EN

Toxic Heavy Metal Free

Yes

California Proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

China Rohs Regulation

X

Circularity Profile

N/A

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Complementary

Wire Section

0.324 mm²

Net Weight

1.49 kg

Total Number Of Wires

40

Awg Gauge

AWG 22

Relative Impedance

10 MOhm <= 50 V || 100 MOhm 50...250 V

Specifications

Number Of Cables

2

Electrical Connection

1 connector 40 ways || 2 ends with color-coded flying leads DIN 47100

Range Of Product

Modicon X80

Accessory / Separate Part Designation

preformed cordset with one end with flying leads

Cable Length

5 m

Accessory / Separate Part Type

preformed cordset

Accessory / Separate Part Destination

for I/O module with 40-way connectors
