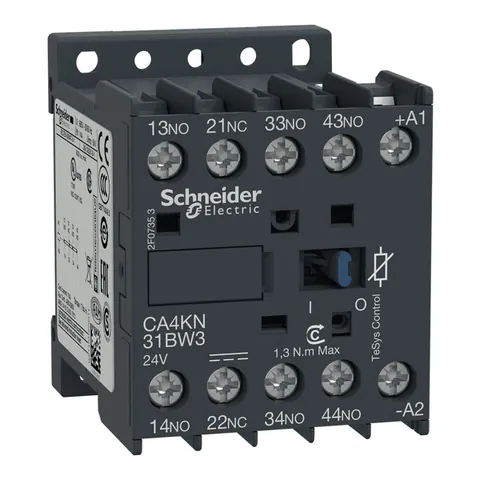

CA4KN31BW3

Environment

Product Certifications

CB Scheme || CCC || UL || CSA || EAC || CE || UKCA

Mechanical Robustness

vibrations contactor open2 Gn, 5...300 Hz IEC 60068-2-6 || vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 || shocks contactor open10 Gn for 11 ms IEC 60068-2-27 || shocks contactor closed15 Gn for 11 ms IEC 60068-2-27

Ambient Air Temperature For Operation

-25-50 °C

Standards

EN/IEC 60947-4-1 || GB/T 14048.4 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || JIS C8201-4-1

Flame Retardance

V1 conforming to UL 94 || requirement 2 conforming to NF F 16-101 || requirement 2 conforming to NF F 16-102

Ambient Air Temperature For Storage

-50-80 °C

Protective Treatment

TC IEC 60068

Ip Degree Of Protection

IP2X

Operating Altitude

6561.68 ft (2000 m) without derating

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP1503003EN

Sustainable Offer Status

Green Premium product

Toxic Heavy Metal Free

Yes

Reach Regulation

Free of Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Reach Free Of Svhc

Yes

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

Circularity Profile

ENVEOLI1503003EN

Eu Rohs Directive

Compliant

Complementary

Minimum Switching Current

5 mA

Height

58 mm

Control Circuit Voltage Limits

drop-out: 0.1...0.75 Uc (at <50 °C) || operational: 0.7...1.3 Uc (at <50 °C)

Non Overlap Distance

0.5 mm

[Ith] Conventional Free Air Thermal Current

10 A (at 50 °C)

Mounting Support

rail || plate

Immunity To Microbreaks

2 ms

Hold-In Power Consumption In W

1.8-1.8 W 20 °C

Insulation Resistance

> 10 MOhm

Irms Rated Making Capacity

110 A IEC 60947

Associated Fuse Rating

10 A gG conforming to IEC 60947 || 10 A gG conforming to VDE 0660

Net Weight

0.235 kg

Connections - Terminals

screw clamp terminals 1 1.5-4 mm²solid || screw clamp terminals 2 1.5-4 mm²solid || screw clamp terminals 1 0.75-4 mm²flexible with cable end || screw clamp terminals 2 0.75-4 mm²flexible without cable end || screw clamp terminals 1 0.34-1.5 mm²flexible with cable end || screw clamp terminals 2 0.34-1.5 mm²flexible without cable end

Coil Technology

built-in bidirectional peak limiting diode suppressor

Minimum Switching Voltage

17 V

Maximum Operating Rate

6000 cyc/h

Tightening Torque

1.3 N.m screw clamp terminals flat Ø 6 mm || 1.3 N.m screw clamp terminals Philips No 2 6 mm || 1.3 N.m screw clamp terminals pozidriv No 2

Mechanical Durability

30 Mcycles

Inrush Power In W

1.8-1.8 W 20 °C)

Operating Time

10...20 ms coil de-energisation and NO opening || 15...25 ms coil de-energisation and NC closing || 30...40 ms coil energisation and NO closing || 25...35 ms coil energisation and NC opening

Width

45 mm

Depth

57 mm

[Ui] Rated Insulation Voltage

690 V IEC 60947 || 750 V VDE 0110 group C || 690 V BS 5424 || 600 V CSA C22.2 No 14

Heat Dissipation

1.8-1.8 W

Specifications

[Ue] Rated Operational Voltage

<= 690 V <= 400 Hz

Control Circuit Type

DC low consumption

[Uc] Control Circuit Voltage

24 V DC

Contactor Application

control circuit

Product Or Component Type

control relay

Product Name

TeSys CAK

Range

TeSys

Pole Contact Composition

3 NO + 1 NC

Utilisation Category

DC-13 || AC-15

Device Short Name

CA4K
