Schneider Electric DF103

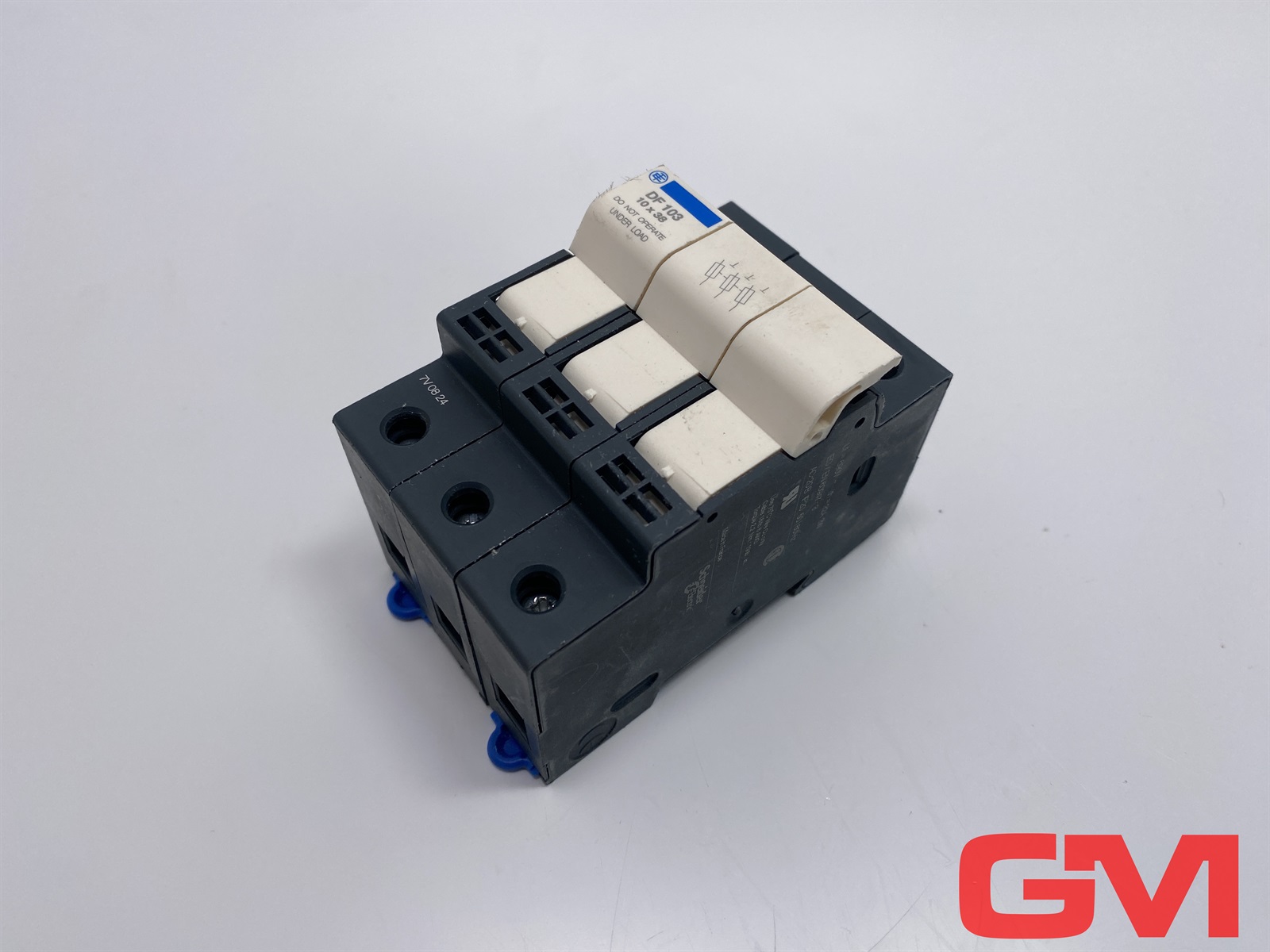

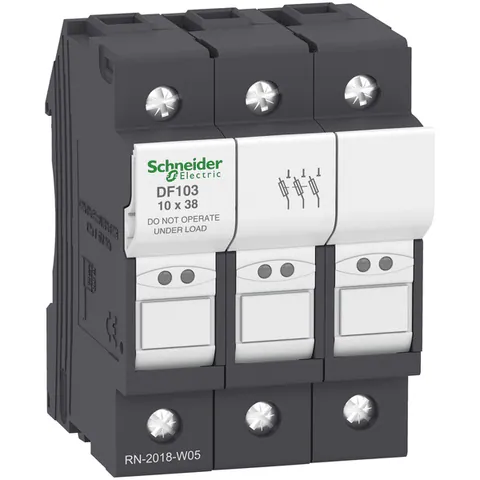

The modular fuse carrier, featuring three poles (3P), is suitable for protecting control circuits with a maximum rating of 32A at 690V. It is designed to accommodate 10x38mm fuse links and supports a short-circuit current rating of up to 120kA at 400V. With a compact width of 52.5mm, this unit can be mounted on a 35mm DIN rail and features screw clamp terminals for secure connections. The device is padlockable for enhanced safety during operation, and additional components such as fuse carrier assembly kits and clip-in markers are available separately.

This product operates effectively in ambient temperatures ranging from -40 to 70 °C, with a derating required above 20 °C. It has an IP20 degree of protection and is suitable for installations up to an altitude of 2000 meters. The fuse carrier is certified to multiple standards including IEC, UL, and CSA, ensuring compliance with various international regulations. Furthermore, it is classified as a Green Premium product, indicating its adherence to environmental standards, including RoHS and REACh compliance.
