Schneider Electric DF83

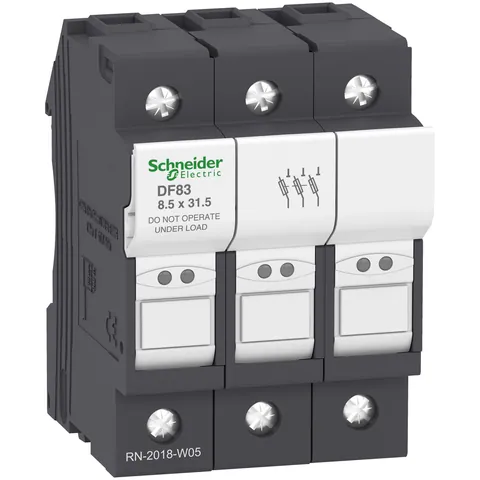

This modular fuse carrier is designed for use in control circuit applications, supporting a rated operational voltage of 400V AC and a maximum operational current of 25A. It is compatible with fuse links measuring 8.5x31.5mm, allowing for efficient circuit protection. The carrier is rated for short-circuit withstand of 20kA at 400V, ensuring robust safety measures are in place. It features a compact width of 52.5mm, suitable for installation in modular panels using a 35mm DIN rail mount.

The device is equipped with screw clamp terminals that accept rigid cables up to 16mm² and flexible cables up to 6mm², accommodating a range of installation needs. Its toggle control is padlockable, enhancing operational safety. This product conforms to multiple standards including IEC and EAC, and is certified for marine applications, indicating its versatility in demanding environments.

Operating within a temperature range of -40°C to 70°C and maintaining functionality at altitudes up to 2000m, this fuse carrier demonstrates its capability under various conditions. Fire resistance is rated at 960°C according to IEC 60695-2-1, adding another layer of reliability. For ease of installation and maintenance, the product is designed with a maximum power dissipation of 2.5W, ensuring efficient thermal management.

For installation, it is advised to mount the unit vertically, with a tolerance of +/- 23°. The item is supplied in sets of four, facilitating bulk installations.
