Schneider Electric
DU322
1 / 5
Description
Active Mature

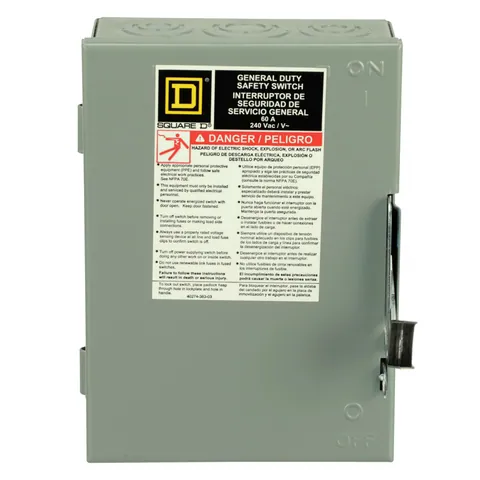

General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 60A with a NEMA 1 degree of protection. This non-fusible disconnect switch comes with no neutral. This general duty switch is a 3-pole, 240VAC has a short circuit rating of 100kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 12 AWG 3, aluminum & AWG 14 AWG 3, copper. This switch is certified to UL standards. Dimensions for this product are 9.25 in (H), 7.25 in (W), 3.63 in (D). General Duty safety switches come with an 18 months warranty.- Country of Origin
- MX
- Part Number
- DU322
- Tariff Code
- 8536509045
- EAN
- 39122218
- UPC
- 785901491743
- UNSPSC
- 39122218
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
Send request for price
1
Payment methods:
Environment
- Product Certifications
- UL listed file E2875
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1310005EN
- Sustainable Offer Status
- Green Premium product
- Pvc Free
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile
- N/A
- Eu Rohs Directive
- Compliant
Complementary
- Height
- 9.25 in
- Device Mounting
- surface
- Tightening Torque
- 35-35 lbf.in 2.08-5.26 mm² (AWG 14...AWG 10) || 35-35 lbf.in (AWG 14...AWG 10) || 45-45 lbf.in 8.37-8.37 mm² (AWG 8) || 45-45 lbf.in 12.3-21.12 mm² (AWG 6...AWG 4) || 50-50 lbf.in 26.67-26.67 mm² (AWG 3)
- Net Weight
- 9 kg
- Electrical Connection
- lugs
- Awg Gauge
- AWG 12...AWG 3 aluminium || AWG 14...AWG 3 copper
- Width
- 7.25 in
- Wiring Configuration
- 3-wire
- Depth
- 3.63 in
Specifications
- Disconnector Device Type
- non-fusible disconnect switch
- Product Or Component Type
- Single Throw Safety Switch
- Phase
- 3 phase
- Series Name
- general duty
- Nema Degree Of Protection
- NEMA 1
- Line Rated Current
- 60 A
- Motor Power Hp
- 10 hp at 240 V AC 60 Hz for 1 phase motors || 15 hp at 240 V AC 60 Hz for 3 phase motors
- Device Composition
- none
- Device Application
- residential
- Number Of Poles
- 3
- [Ue] Rated Operational Voltage
- 240 V AC
Documents
Data Sheet
