Schneider Electric EDB34080

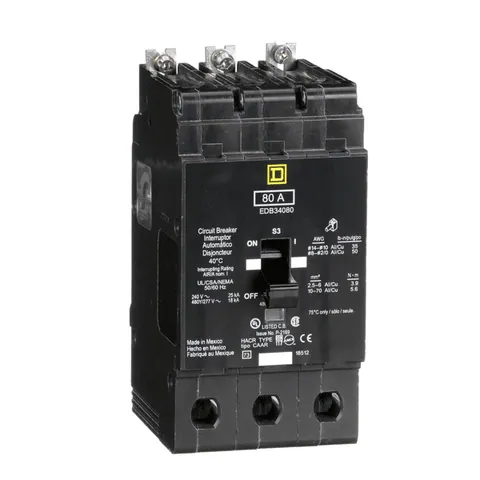

The E-Frame Circuit Breaker is a high-performance, bolt-on breaker that provides a broad set of functionalities tailored for Square D NF Panelboards. This 3-pole device boasts an impressive rating of 80 A at a system voltage of 480Y/277 VAC, ensuring optimal performance and reliability.

Equipped with a thermal-magnetic trip unit and a signal indicator, this breaker is designed to alert users when a trip has occurred. It also features HACR rating for enhanced safety standards. The aluminium lugs of the breaker have a terminal lug rating ranging from AWG 12 to AWG 2/0 (aluminium) and from AWG 14 to AWG 2/0 (copper), providing versatile connectivity options.

The E-Frame Circuit Breaker has been tested at various voltages, with a breaking capacity of 18 kA at 480Y/277 VAC and 25 kA at 120/240 VAC. It also features a hold current of 1000 A and a trip current of 2300 A, ensuring reliable operation under various conditions.

This compact breaker measures 5.66 inches in height, 2.94 inches in width, and 4.05 inches in depth, making it suitable for a variety of installation scenarios. It is calibrated for 40 degrees Celsius, ensuring optimal performance under typical operating conditions.
