Schneider Electric EGB34035

Name: Mini circuit breaker, E-Frame, 35A, 3 pole, 480Y/277 VAC, 65 kA max, bolt on
Brand: Schneider Electric
SKU: EGB34035

Mini circuit breaker, E-Frame, 35A, 3 pole, 480Y/277 VAC, 65 kA max, bolt on

1 / 6

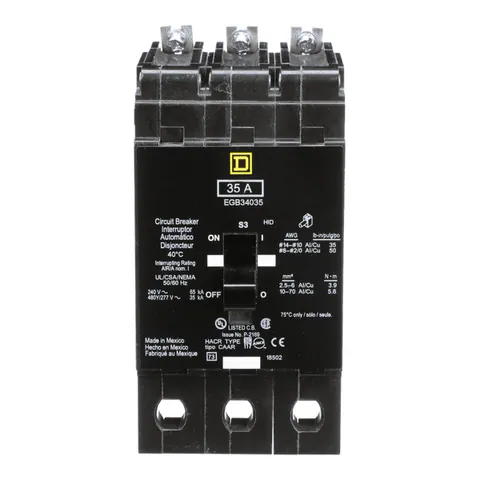

Manufacturer catalogue image

Product Description

Lifecycle Status:

E Frame thermal magentic circuit breakers are for use in NF panelboards. These circuit breakers will protect against overload and short circuit conditions. Breakers have a trip indicator. This bolt on circuit breaker has a maximum voltage rating of 480Y/277 VAC. This 3 pole 35 A breaker is rated for HACR and HID applications. Breaker has a breaking capacity of 35 kA at 480Y/277 VAC. Circuit breaker has other breaking capacity ratings based on operting voltage. The breaking capacity code for this circuit breaker is G. Electrical connections are made using aluminum lugs. The lugs on this circuit breaker will accept 14 AWG to 2/0 AWG copper and 12 AWG to 2/0 AWG aluminum wire. Three spaces are used by this circuit breaker. Circuit breaker is 5.66 inches tall, is 2.94 inches wide and 4.05 inches deep. E frame circuit breakers are UL Listed and CSA certified.

Send Inquiry

Payment methods:

Offer details

Best offer from:: Trusted supplier — Romania, member since 2023, 1–4 employees
Availability:: 1 pc.
On Request
Updated at: 22-08-2026
Condition:: New Surplus

New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: Schneider Electric
Product Certifications: cULus
Ambient Air Temperature For Operation: 40 °C
Warranty: 18 months
Rohs Exemption Information: Yes
Mercury Free: Yes
Reach Regulation: Reference contains Substances of Very High Concern above the threshold
