Schneider Electric GS1DDU3

Name: TeSys GS, disconnect switch, fuse, 3 P, 600 V, UL 30 A, Type CC fuse
Brand: Schneider Electric
SKU: GS1DDU3

TeSys GS, disconnect switch, fuse, 3 P, 600 V, UL 30 A, Type CC fuse

1 / 1

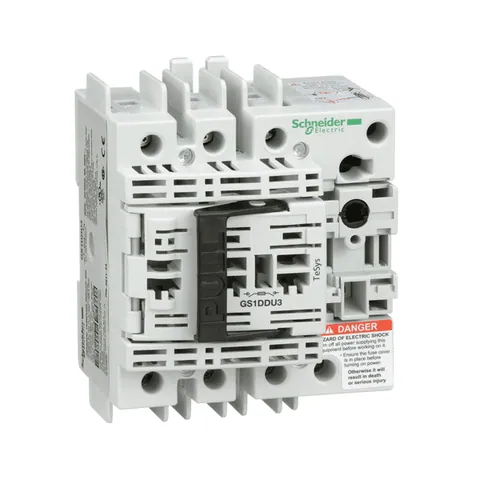

Manufacturer catalogue image

Product Description

Lifecycle Status:

The Schneider Electric TeSys GS disconnect switch with fuse is designed for use in motor applications up to 15kW at 400V AC-23. This 3 pole (3P) device is rated for 30A/800V and can be used with class CC fuse links up to 30A. It features a direct operating handle GS1AH106 or an external front side mounting operating handle, both available separately. The switch provides screw terminals with 3P terminal shrouds and has a high short circuit current rating of 100kA@600V.

For enhanced functionality, auxiliary contact modules GS1AM can be added for early-break and position signaling. These modules are available separately. The TeSys GS switch is UL/CSA certified and complies with Green Premium standards (RoHS/REACh).

Send Inquiry

Payment methods:

Offer details

Best offer from:: Trusted supplier — Romania, member since 2023, 1–4 employees
Availability:: 1 pc.
On Request
Updated at: 22-08-2026
Condition:: New Surplus

New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: Schneider Electric
Product Certifications: LROS (Lloyds register of shipping) || LOVAG || ASEFA
Ambient Air Temperature For Operation: -20-70 °C
Standards: UL 489 || CSA C22.2 No 5
Ambient Air Temperature For Storage: -40-80 °C
Ip Degree Of Protection: IP20 IEC 60529 with terminal cover)
Fire Resistance: 960 °C body IEC 60695-2-1
