Schneider Electric HDA36060

Name: PowerPacT H-Frame Circuit Breaker, 60A, 3 Pole, 600VAC, 14kA, I-Line, Thermal Magnetic, 80%, ABC
Brand: Schneider Electric
SKU: HDA36060

PowerPacT H-Frame Circuit Breaker, 60A, 3 Pole, 600VAC, 14kA, I-Line, Thermal Magnetic, 80%, ABC

1 / 6

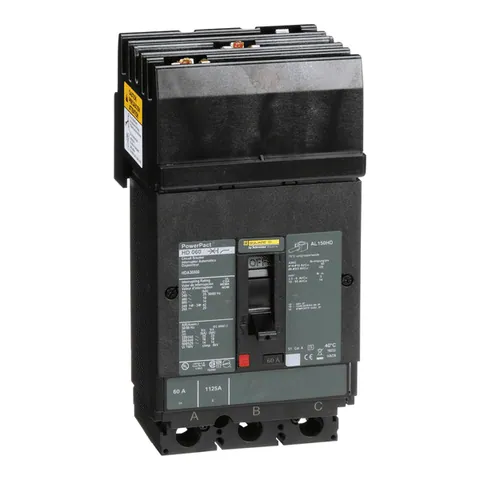

Manufacturer catalogue image

Product Description

Lifecycle Status:

The PowerPacT H-Frame Circuit Breaker is designed to safeguard electrical systems from potential damage caused by overloads and short circuits. This circuit breaker offers thermal magnetic or Micrologic electronic trip protection units, providing a breaking capacity of 14kA at 600VAC.

All PowerPacT H-Frame Circuit Breakers are equipped with dual-break rotating contacts that minimize peak current during short circuit faults. The integral push-to-trip button in the cover allows for manual tripping of the circuit breaker. This model is available in 2 and 3-pole unit mount and I-Line constructions, making it suitable for various applications.

The PowerPacT H I-Line Circuit Breaker features I-Line terminations on the line side and mechanical lugs on the load side, facilitating easy installation and removal in I-Line applications. This circuit breaker has a continuous current rating of 80% with an ABC phase connection.

PowerPacT H Circuit Breakers are compliant with UL, CSA, NOM, and IEC standards and are CE marked, ensuring safety and reliability in electrical systems.

Send Inquiry

Payment methods:

Offer details

Best offer from:: Trusted supplier — Romania, member since 2023, 1–4 employees
Availability:: 1 pc.
On Request
Updated at: 22-08-2026
Condition:: New Surplus

New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: Schneider Electric
Ambient Air Temperature For Operation: -2-70 °C
Standards: UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Product Certifications: UL || CSA || NOM
Ip Degree Of Protection: front cover IP40 IEC 60529
Pollution Degree: 3 IEC 60947-1
Ambient Air Temperature For Storage: -50-85 °C
