Schneider Electric HLL36150M74

Name: Motor circuit protector, PowerPacT H, 150A, 3 pole, 600VAC, 50kA, lugs, thermal magnetic, 80%
Brand: Schneider Electric
SKU: HLL36150M74

Motor circuit protector, PowerPacT H, 150A, 3 pole, 600VAC, 50kA, lugs, thermal magnetic, 80%

1 / 6

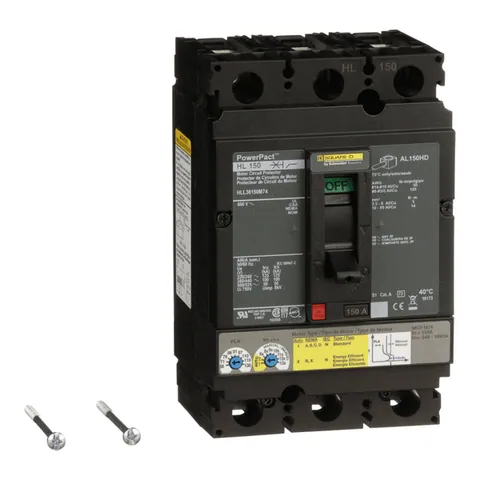

Manufacturer catalogue image

Product Description

Lifecycle Status:

PowerPacT H-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. These motor protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. This unit has lugs on both the line and load side. This PowerPacT H, 150A, 3 pole, motor protector has a breaking capacity of 50kA at 600VAC. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. This breaker has lugs on both the line and load sides. This breaker has a continuous current rating of 80%. PowerPacT H motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.

Send Inquiry

Payment methods:

Offer details

Best offer from:: Trusted supplier — Romania, member since 2023, 1–4 employees
Availability:: 1 pc.
On Request
Updated at: 22-08-2026
Condition:: New Surplus

New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: Schneider Electric
Ambient Air Temperature For Operation: -2-70 °C
Standards: UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Product Certifications: UL || CSA || NOM
Ip Degree Of Protection: front cover IP40 IEC 60529
Pollution Degree: 3 IEC 60947-1
Ambient Air Temperature For Storage: -50-85 °C
