Schneider Electric
HMISTU655
1 / 6
Description
Active Mature

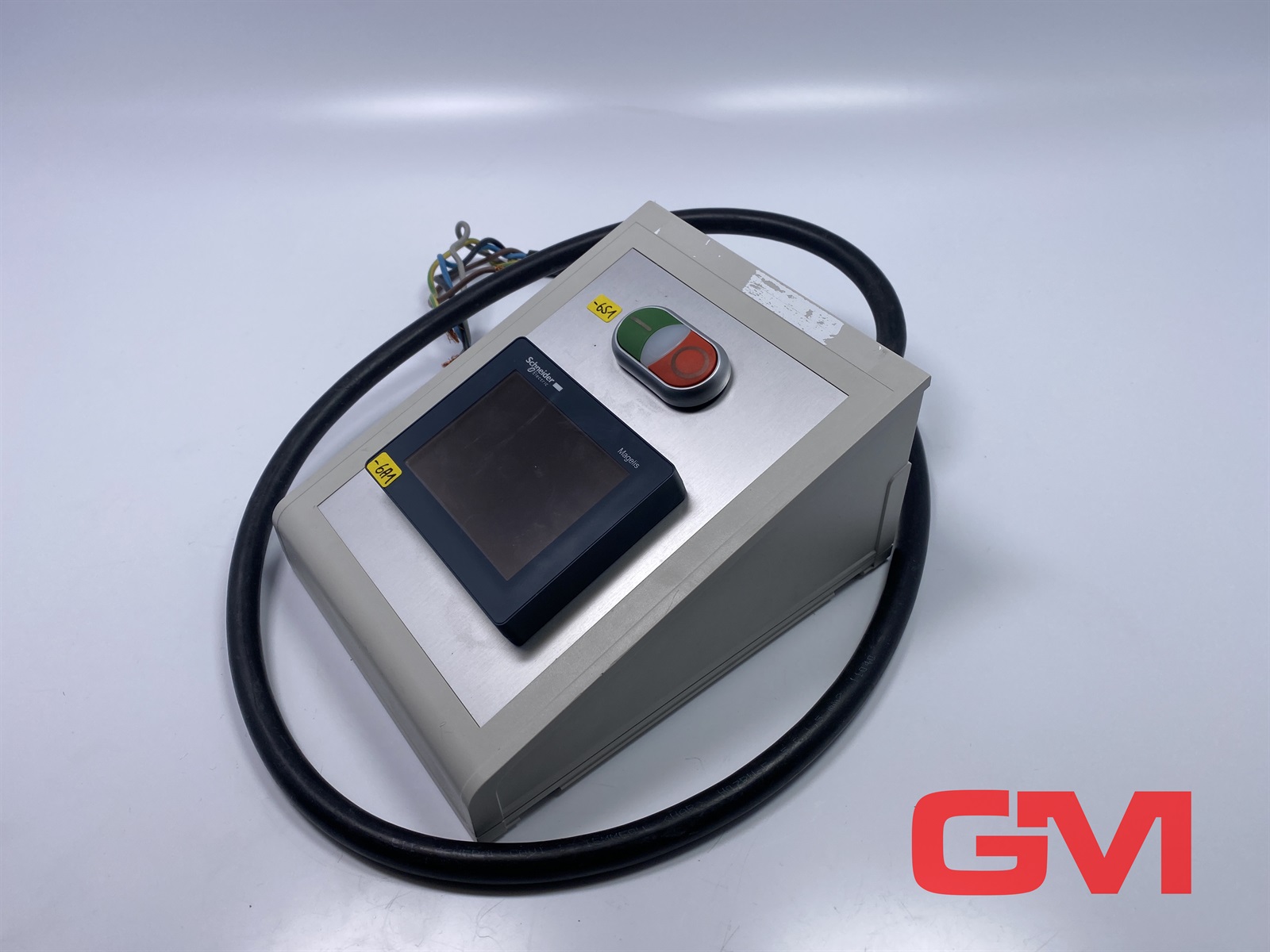

This Magelis STU small touchscreen operator interface (HMI) is supplied with 24V DC, has a 3.5" color TFT LCD display with, 320 x 240 pixels (QVGA) and 32MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays graphic pages with monochrome screen. Thanks to its fixing with a 22mm diameter hole, no panel rectangular cut-out is required. Its RS485 host port makes it ideal to supervise and control simple systems and machines.- Country of Origin
- ID
- Part Number
- HMISTU655
- Tariff Code
- 85371098
- EAN
- 3606489909482
- UNSPSC
- 43211715
€246.68
net€274.09
Free Shipping!1
Payment methods:
- Best offer from:
Trusted Automa.Net Supplier- Availability:
- 6 pcs.In-StockUpdated at: 01-11-2024
- Warranty:
- 24 months
- Estimated Delivery:
- 04-05 November to United Kingdom
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
Shipping Information
Secure Payment Process
Return & Refund Policies
Shipping Policies
Warranty Policies
Environment
- Product Certifications
- cULus || C-tick || Marine || UL class 1 Div2 T4A ou T5 || UKCA
- Ambient Air Temperature For Operation
- 0-50 °C
- Resistance To Electromagnetic Fields
- 10 V/m IEC 61000-4-3
- Standards
- IEC 61000-6-2 || IEC 61131-2 || UL 1604 || UL 508 || FCC Class A
- Immunity To Microbreaks
- 10 ms
- Vibration Resistance
- +/- 3.5 mm 5-9 Hz) IEC 60068-2-6 || 1 gn 9-150 Hz) IEC 60068-2-6
- Shock Resistance
- 15 gn 11 msIEC 60068-2-27
- Ip Degree Of Protection
- IP20 IEC 60529 rear panel) || IP65 IEC 60529 front panel)
- Ambient Air Temperature For Storage
- -20-60 °C
- Nema Degree Of Protection
- NEMA 4X front panel indoor use)
- Relative Humidity
- 0-85 % without condensation
- Operating Altitude
- <= 6561.68 ft (2000 m)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2101003EN
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2101003EN
- Upgradeability
- Upgradeable through digital modules and upgraded components
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Number Of Pages
- limited by internal memory capacity
- Brightness
- 16 levels
- Height
- 98.15 mm
- Inrush Current
- 30 A
- Power Consumption In W
- 6.5 W
- Supply
- external source
- Display Resolution
- 320 x 240 pixels QVGA
- Marking
- with Schneider logo || CE
- Processor Frequency
- 333 MHz
- Fixing Mode
- Ø 22 mm hole
- Backlight Lifespan
- 50000 hours
- Touch Panel
- analogue
- Supply Voltage Limits
- 20.4-28.8 V
- Integrated Connection Type
- 1 USB 2.0 type mini B || 1 USB 2.0 type A || COM1 serial link - female RJ45 - RS232C/RS485 <= 115.2 kbits/s) || power supply - removable screw terminal block || 1 Ethernet - RJ45
- Display Size
- 3.5 inch
- Downloadable Protocols
- Modbus TCP/IP || Modbus || Uni-TE || third party protocols
- Realtime Clock
- access to the PLC real-time clock
- Enclosure Material
- PC/PBT
- Display Colour
- 65536 colours
- Width
- 118 mm
- Display Type
- QVGA TFT colour touchscreen
- Depth
- 55.3 mm
- Character Font
- Chinese (simplified Chinese) || Japanese (ANK, Kanji) || ASCII || Korean || Taiwanese (traditional Chinese)
- Memory Description
- application memory 16 MB || back up of data 64 kB
- [Us] Rated Supply Voltage
- 24 V DC
Specifications
- Range Of Product
- Harmony STO & STU
- Product Or Component Type
- touch panel screen
- Operating System
- Harmony
- Processor Name
- CPU ARM9
- Software Designation
- Vijeo Designer
