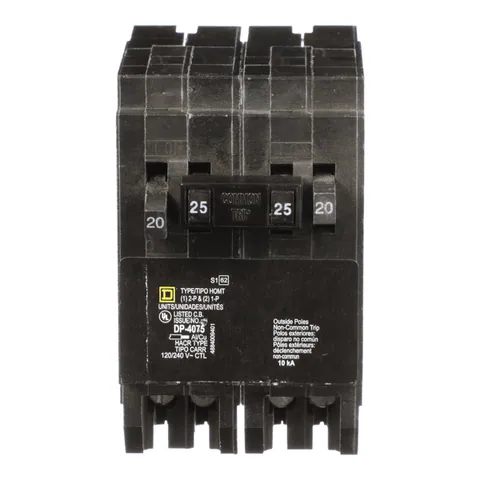

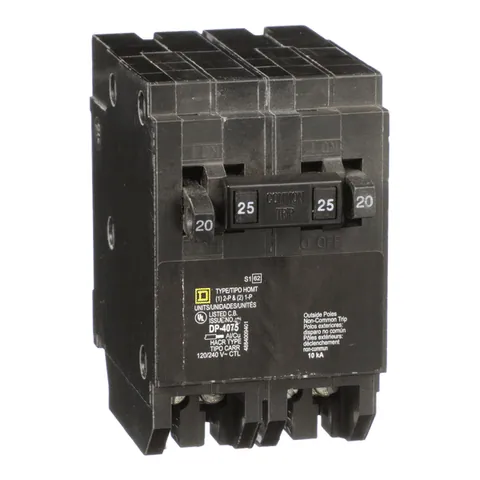

Schneider Electric HOMT2020225

The Homeline Quad Tandem Circuit Breaker is designed for efficient installation and optimal circuit protection. This breaker is compatible with Homeline load centers to provide circuit protection. The HOMT circuit breaker is a quad tandem breaker, occupying two HOM pole spaces.

This quad tandem breaker consists of a central two-pole breaker rated at 25A and 120/240VAC, with single-pole breakers on each side, rated at 20A and 120/240VAC. It provides a breaking capacity of 10 kA.

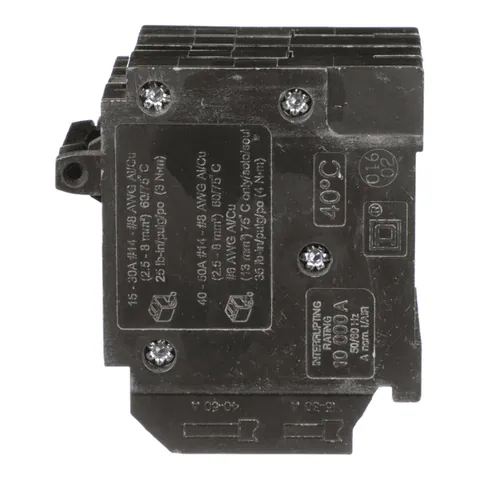

This circuit breaker accepts wire sizes ranging from 14 AWG to 8 AWG, both copper and aluminum. The tandem breaker has dimensions of 3.13 inches in height, 2.00 inches in width, and 2.98 inches in depth.

The Homeline Quad Tandem Circuit Breaker is UL Listed, ensuring safety and reliability. It's an excellent choice for electrical installations requiring fast and efficient circuit protection.
