Schneider Electric ILE2K661PC1A0
brushless DC motor, 24..48V, EtherNet/IP interface, L = 122mm, without gearbox
1 / 1

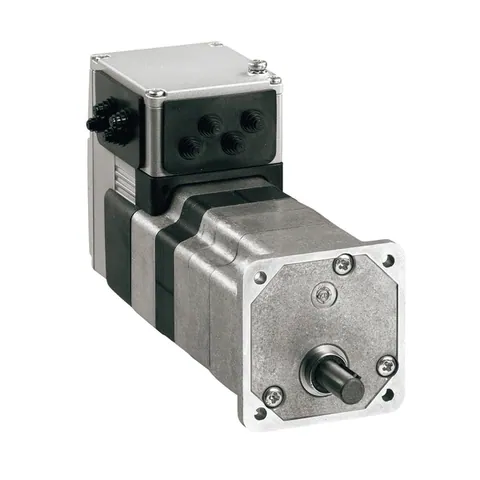

Manufacturer catalogue image
Product Description
Lifecycle Status:
This device is categorized within the Lexium ILA, ILE, ILS range, designed for integrated motion control solutions. The motor operates at a nominal speed of 4800 rpm at 24V and 6000 rpm at 36V, providing a consistent nominal torque of 0.26 Nm across both voltages.
Constructed without a gearbox and holding brake, this motor incorporates a BLDC encoder for feedback. It features a transmission rate of 125, 250, and 500 kbauds, enhancing its communication capabilities. The electrical connection is established via an industrial connector, ensuring robust integration into various systems.
With a motor flange size of 66 mm and four mounting holes of 4.4 mm diameter, it accommodates a circle diameter of 73.54 mm. Weighing in at 1.4 kg, it is designed for easy installation and alignment, complying with IEC 60034-7 standards for multiple mounting positions.
This product is certified by CUL, TÜV, and UL, enabling reliability in diverse operational environments. The permissible ambient temperature ranges from 0 to 40 °C without derating, and 40 to 55 °C with power derating of 2% per °C. It also meets stringent environmental regulations, being mercury-free and PVC-free, thus qualifying as a Green Premium product.
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — Romania, member since 2023, 1–4 employees- Availability:
- 1 pc.On RequestUpdated at: 22-08-2026
- Condition:
- New Surplus
New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Schneider Electric
- Product Certifications
- cUL || UL || TÜV
- Standards
- EN 61800-3 : 2001-02 || IEC 50178 || EN 61800-3:2001, second environment || IEC 60072-1 || IEC 61800-3, Ed 2 || IEC 61800-3 || IEC 50347
- Ambient Air Temperature For Operation
- 40-55 °C with power derating of 2 % per °C) || 0-40 °C without derating)
- Shock Resistance
- 150 m/s² 1000 shocks IEC 60068-2-29
- Vibration Resistance
- 20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6
- Permissible Ambient Air Temperature Around The Device
- 105 °C power amplifier || 110 °C motor
