Schneider Electric KDF1PZ
TeSys VARIO / Mini VARIO - front and red rotary handle - without padlocking
1 / 1

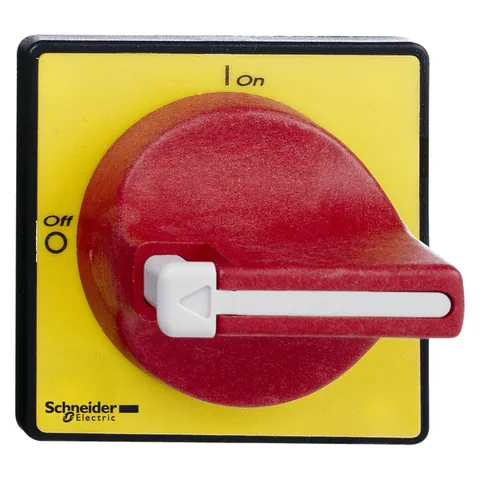

Manufacturer catalogue image
Product Description
Lifecycle Status:
KDF1PZ is an operating handle for TeSys Vario switch-disconnector from Schneider Electric. It provides a red not padlockable handle with a yellow 60x60mm front plate for mounting on door with 4 screw fixing. It operates VN12, VN20, and V02 to V2 switch bodies directly or through a shaft extension. Intended for main and emergency stop usage, it ensures IP65 to the mounting. Front plate with I-O indicators and with 4 holes fixing, it ensures an IP65 protection (NEMA type 1 and 12) to the mounting. Green Premium compliant (RoHS/REACh).
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — Germany, member since 2024- Availability:
- 0 pcs.On RequestUpdated at: 04-09-2026
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Schneider Electric
- Ip Degree Of Protection
- IP65
- Warranty
- 18 months
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2211006
- Sustainable Offer Status
- Green Premium product
Access our platform to find more offers
Register now to explore 36 mln offers from verified suppliers worldwide.
- Compare offers globally
- Direct supplier contact
- RFQs, Quotes, and Orders
- BOM Search
Sign UpFree 14-day trial available
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Schneider Electric KDF1PZ, including specifications and features.
Download Data Sheet
TracePartsCAD Models
3D CAD model and technical drawings, ready for your design software.
Download CAD Model
Compatible Products
Schneider Electric
Door interlock accessory for Vario switch-disconnectors, designed to prevent enclosure door opening when the switch is in the ON position.
Schneider Electric
TeSys Vario accessory, seal plate for door mounting operators for Vario switch-disconnectors
Schneider Electric
Accessory for door mounting operators, designed for use with Vario switch-disconnectors and 60 x 60 mm front plates.
Schneider Electric
Shaft extension designed for TeSys Vario switch bodies V02 to V2, accommodating a distance of 300-330mm.
Schneider Electric
TeSys Vario shaft extension, for TeSys mini-Vario switch bodies VN12 and VN20
