Schneider Electric
LA11212

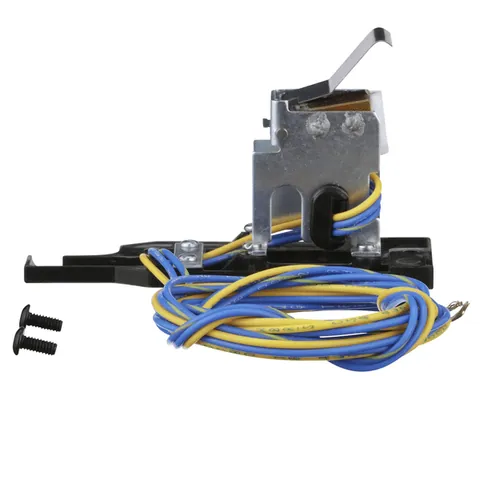

Circuit breaker accessory, LA/LH/Q4, auxiliary contact, 125 to 250VAC, 30VDC, 1A/1B
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
Send request for price
1
Payment methods:
Additional Information
- Part Number
- LA11212
- UPC
- 785901005476
- UNSPSC
- 39121522
- Tariff Code
- 8536509065
- Country of Origin
- MX
Environment
- Product Certifications
- CSA || UL Listed
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- N/A
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1410004EN
- Sustainable Offer Status
- Green Premium product
- Pvc Free
- Yes
- Eu Rohs Directive
- Compliant with Exemptions
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Halogen Content Performance
- Halogen free plastic parts product
Complementary
- Contacts Type And Composition
- 1 NO + 1 NC
- Tightening Torque
- 13-13 N.m 42-304 mm² (AWG 1...600 kcmil) || 13-13 N.m 42-127 mm² (AWG 1...250 kcmil) || 42-42 N.m
- Marking
- A || B
- Rated Voltage
- 125-250 V AC || 30-30 V DC
Specifications
- Breaking Capacity Code
- LA || Q4 || LH
- Product Or Component Type
- auxiliary contact
Documents
Data Sheet
