Schneider Electric
LA1SK20
- Condition:
- New Factory Sealed
- Available:
- 27 pcs.In-StockUpdated at: 22-11-2024
- Offer from:
Trusted Automa.Net Supplier- Estimated Delivery:
- On Request
- Warranty:
- 12 months
1
Schneider Electric
LA1SK20
1 / 1
Description
Active Mature

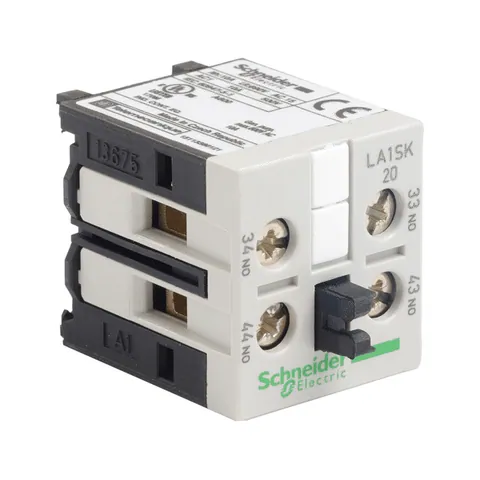

TeSys SK instantaneous auxiliary contact block, for mini contactors LC1SK, LP1SK and mini control relays CA2SK, CA3SK. It provides 2NO contacts rated up to 10A/690V AC, connection by screw clamp terminals. Front mounting by clip-on, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).- Country of Origin
- CZ
- Part Number
- LA1SK20
- Tariff Code
- 85369095
- EAN
- 3389110564013
- UNSPSC
- 39121522
Payment methods:
- Best offer from:
Trusted Automa.Net Supplier- Availability:
- 2 pcs.In-StockUpdated at: 22-11-2024
- Warranty:
- 12 months
- Estimated Delivery:
- On Request
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
A total of 29 Parts In-Stock from 2 Distributors
Secure Payment Process
Return & Refund Policies
Shipping Policies
Warranty Policies
Available Offers (1)
Environment
- Product Certifications
- CB Scheme || CE || UKCA || EAC || cULus
- Ambient Air Temperature For Operation
- -20-50 °C
- Standards
- CSA C22.2 No 60947-5-1 || EN/IEC 60947-5-1 || UL 60947-5-1
- Ip Degree Of Protection
- IP2X
- Ambient Air Temperature For Storage
- -50-70 °C
- Protective Treatment
- TC IEC 60068
- Operating Altitude
- 6561.68 ft (2000 m) without derating
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1503003EN
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI1503003EN
- Eu Rohs Directive
- Compliant with Exemptions
Complementary
- [Ith] Conventional Free Air Thermal Current
- 10 A (at 55 °C)
- [Ue] Rated Operational Voltage
- 690 V AC <= 400 Hz
- Associated Fuse Rating
- 10 A gL conforming to IEC 60947 || 10 A gL conforming to VDE 0660
- Net Weight
- 0.022 kg
- Mounting Location
- front side
- [Ui] Rated Insulation Voltage
- 690 V IEC 60947 || 690 V BS 5424 || 690 V VDE 0110 group C || 690 V CSA C22.2 No 14
- Tightening Torque
- 0.8 N.m screw clamp terminals
- Width
- 27 mm
Specifications
- Product Or Component Type
- auxiliary contact block
- Connections - Terminals
- screw clamp terminals 1 1.5-6 mm²solid || screw clamp terminals 2 1.5-4 mm²solid || screw clamp terminals 1 0.5-6 mm²flexible with cable end || screw clamp terminals 2 0.35-2.5 mm²flexible with cable end || screw clamp terminals 1 0.35-6 mm²flexible without cable end || screw clamp terminals 2 0.35-1.5 mm²flexible without cable end
- Range
- TeSys
- Pole Contact Composition
- 2 NO
- Product Compatibility
- LC1SK
- Auxiliary Contacts Operation
- instantaneous
- Device Short Name
- LA1SK
