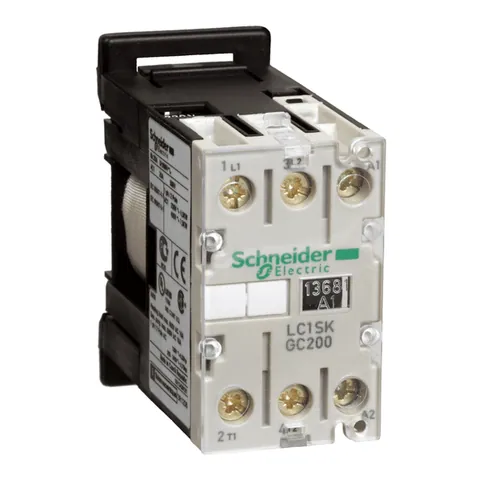

Schneider Electric LC1SKGC200B7

The Mini Contactor operates effectively with 2 poles (2NO) for controlling non-inductive loads rated up to 20A at 690V AC-1, and is designed for 1-phase motor control applications up to 5A at 690V AC-3.

This product features a control circuit voltage of 24V AC at 50/60Hz, enabling efficient operation in various applications. It is compact, measuring 27mm in width, and can be mounted onto a 35mm DIN rail, making it ideal for modular panels. The contactor is designed for an operating rate of up to 1200 cycles per hour and functions effectively within an ambient temperature range of -20°C to +50°C.

In terms of durability, the product has a mechanical lifespan of 10 million cycles and is resistant to environmental factors with an IP2X protection rating conforming to VDE 0106 standards. Additionally, it is compatible with a suppressor module (LA4SK), which can be ordered separately. Certification includes compliance with multiple standards such as IEC, UL, and CSA, and it adheres to Green Premium compliance for environmental standards.
