Schneider Electric LC2D1156F7

Name: REVERSING CONTACTOR
Brand: Schneider Electric
SKU: LC2D1156F7

REVERSING CONTACTOR

1 / 1

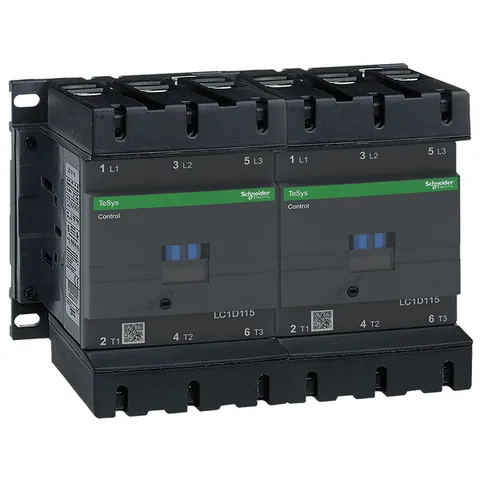

Manufacturer catalogue image

Product Description

Lifecycle Status:Successor:

"TeSys Deca reversing contactor, 3P(3NO) for category AC-3/3e applications up to 150A @440V." "It provides with 110V 50/60H coil, with 1NO+1NC auxiliary contact, power and control connections by screw clamp terminals." "It procures with 8 Mcycles mechanical durability and 0.95 Mcycles electrical durability." "It provides IP20 protection on front face conforming to IEC 60529." "It can cover -40°C to 60°C operation temperature and without derating under 3000m altitude." "Designed for demanding applications with maximum operating rates up to 2400 cycles per hour under maximum 60°C." "The dimension is 158mm x 266mm x 148mm (H x W x D), mounting on rail or plate." "Multi standards certified(UL,LROS,CSA,CCC,EAC,UKCA,CB,DNV-GL,RINA,BV) and Green Premium compliant (RoHs/Reach)."

Send Inquiry

Payment methods:

Offer details

Best offer from:: Trusted supplier — Romania, member since 2023, 1–4 employees
Availability:: 1 pc.
On Request
Updated at: 22-08-2026
Condition:: New Surplus

New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: Schneider Electric
Mechanical Robustness: vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor closed15 Gn for 11 ms || shocks contactor open6 Gn for 11 ms
Ambient Air Temperature For Operation: -40-60 °C || 60-70 °C with derating
Climatic Withstand: IACS E10
Pollution Degree: 3
Flame Retardance: V1 conforming to UL 94
Ambient Air Temperature For Storage: -60-80 °C
