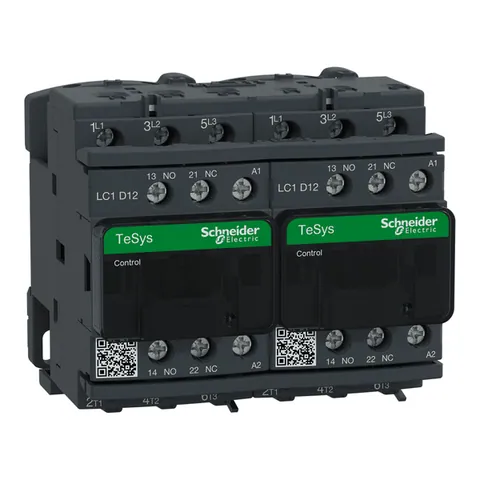

LC2D12G7V

Environment

Mechanical Robustness

vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor open10 Gn for 11 ms || shocks contactor closed15 Gn for 11 ms

Ambient Air Temperature For Operation

-40-60 °C || 60-70 °C with derating

Height

77 mm

Climatic Withstand

IACS E10 || IEC 60947-1 Annex Q category D

Pollution Degree

3

Net Weight

0.697 kg

Flame Retardance

V1 conforming to UL 94

Ambient Air Temperature For Storage

-60-80 °C

Protective Treatment

TH IEC 60068-2-30

Ip Degree Of Protection

IP20 front face IEC 60529

Operating Altitude

0...9842.52 ft (0...3000 m)

Fire Resistance

850 °C IEC 60695-2-1

Width

90 mm

Depth

86 mm

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP1501004

Sustainable Offer Status

Green Premium product

Pvc Free

Yes

Toxic Heavy Metal Free

Yes

Reach Regulation

Free of Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Reach Free Of Svhc

Yes

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

Circularity Profile

ENVEOLI1501004

Eu Rohs Directive

Compliant

Complementary

Non-Overlap Time

1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact

Minimum Switching Current

5 mA for signalling circuit

Control Circuit Voltage Limits

0.3...0.6 Uc -40-70 °C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60 °C operational AC 50 Hz || 0.85...1.1 Uc -40-60 °C operational AC 60 Hz || 1...1.1 Uc 60-70 °C operational AC 50/60 Hz

Insulation Resistance

> 10 MOhm for signalling circuit

Inrush Power In Va

70-70 VA 60 Hz cos phi 0.75 (at 20 °C) || 70-70 VA 50 Hz cos phi 0.75 (at 20 °C)

Coil Technology

without built-in suppressor module

Minimum Switching Voltage

17 V for signalling circuit

Signalling Circuit Frequency

25...400 Hz

Auxiliary Contacts Type

mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1

Hold-In Power Consumption In Va

7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C) || 7-7 VA 50 Hz cos phi 0.3 (at 20 °C)

Heat Dissipation

2-3 W 50/60 Hz

Specifications

Product Certifications

DNV || CSA || CCC || UL || GL || LROS (Lloyds register of shipping) || BV || RINA || GOST || UKCA

Interlocking Type

electrical and mechanical

[Uc] Control Circuit Voltage

120 V AC 50/60 Hz

[Ue] Rated Operational Voltage

power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC

Power Dissipation Per Pole

1.56 W AC-1 || 0.36 W AC-3

Average Impedance

2.5 mOhm - Ith 25 A 50 Hz for power circuit

Auxiliary Contact Composition

1 NO + 1 NC

[Ith] Conventional Free Air Thermal Current

10 A (at 60 °C) for signalling circuit || 25 A (at 60 °C) for power circuit

Mounting Support

plate || rail

Control Circuit Type

AC 50/60 Hz

Standards

CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1

Safety Reliability Level

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Contactor Application

resistive load || motor control

Rated Breaking Capacity

250 A at 440 V for power circuit conforming to IEC 60947

Product Or Component Type

reversing contactor

Irms Rated Making Capacity

250 A at 440 V for power circuit conforming to IEC 60947 || 140 A AC for signalling circuit conforming to IEC 60947-5-1 || 250 A DC for signalling circuit conforming to IEC 60947-5-1

Product Name

TeSys D || TeSys Deca

Associated Fuse Rating

10 A gG for signalling circuit conforming to IEC 60947-5-1 || 40 A gG at <= 690 V coordination type 1 for power circuit || 25 A gG at <= 690 V coordination type 2 for power circuit

[Uimp] Rated Impulse Withstand Voltage

6 kV IEC 60947

Connections - Terminals

power circuit screw clamp terminals 1 1-4 mm²flexible without cable end || power circuit screw clamp terminals 2 1-4 mm²flexible without cable end || power circuit screw clamp terminals 1 1-4 mm²flexible with cable end || power circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end || power circuit screw clamp terminals 1 1-4 mm²solid || power circuit screw clamp terminals 2 1-4 mm²solid || control circuit screw clamp terminals 1 1-4 mm²flexible without cable end || control circuit screw clamp terminals 2 1-4 mm²flexible without cable end || control circuit screw clamp terminals 1 1-4 mm²flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end || control circuit screw clamp terminals 1 1-4 mm²solid || control circuit screw clamp terminals 2 1-4 mm²solid

Range

TeSys || TeSys Deca

Pole Contact Composition

3 NO

Device Presentation

preassembled with reversing power busbar

Utilisation Category

AC-3 || AC-1

[Ie] Rated Operational Current

25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit || 12 A (at <60 °C) at <= 440 V AC AC-3 for power circuit

Maximum Operating Rate

3600 cyc/h 60 °C

Tightening Torque

power circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || power circuit 1.7 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals pozidriv No 2 || power circuit 2.5 N.m screw clamp terminals pozidriv No 2

Electrical Durability

2 Mcycles 12 A AC-3 <= 440 V || 0.8 Mcycles 25 A AC-1 <= 440 V

Mechanical Durability

15 Mcycles

Poles Description

3P

Operating Time

12...22 ms closing || 4...19 ms opening

Overvoltage Category

III

Motor Power Kw

3 kW at 220...230 V AC 50 Hz || 5.5 kW at 380...400 V AC 50 Hz || 5.5 kW at 415...440 V AC 50 Hz || 7.5 kW at 500 V AC 50 Hz || 7.5 kW at 660...690 V AC 50 Hz

Maximum Horse Power Rating

1 hp at 115 V AC 60 Hz for 1 phase motors || 2 hp at 230/240 V AC 60 Hz for 1 phase motors || 3 hp at 200/208 V AC 60 Hz for 3 phase motors || 3 hp at 230/240 V AC 60 Hz for 3 phase motors || 7.5 hp at 460/480 V AC 60 Hz for 3 phase motors || 10 hp at 575/600 V AC 60 Hz for 3 phase motors

[Ui] Rated Insulation Voltage

power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || signalling circuit 690 V IEC 60947-1 || signalling circuit 600 V CSA || signalling circuit 600 V UL

Device Short Name

LC2D

[Icw] Rated Short-Time Withstand Current

30 A 40 °C - 10 min for power circuit || 61 A 40 °C - 1 min for power circuit || 105 A 40 °C - 10 s for power circuit || 210 A 40 °C - 1 s for power circuit || 100 A - 1 s for signalling circuit || 120 A - 500 ms for signalling circuit || 140 A - 100 ms for signalling circuit

Protective Cover

with
