Schneider Electric LC2D32G7V

Name: TeSys Deca reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 32 A - 120 V AC coil
Brand: Schneider Electric
SKU: LC2D32G7V

TeSys Deca reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 32 A - 120 V AC coil

1 / 1

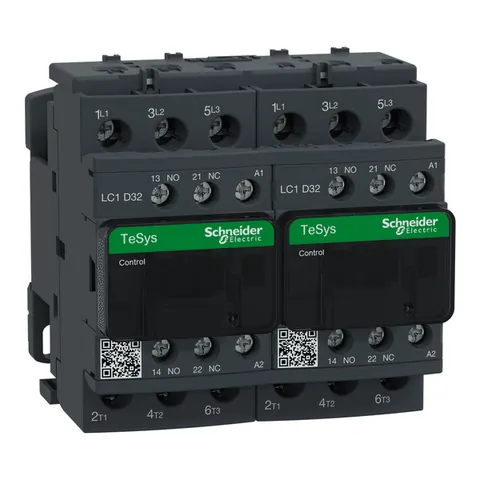

Manufacturer catalogue image

Product Description

Lifecycle Status:

TeSys D reversing contactor, 3 poles (3NO), for motor control applications up to 32A/690V AC-3 (15kW@400V). It provides 120V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Send Inquiry

Payment methods:

Offer details

Best offer from:: Trusted supplier — Romania, member since 2023, 1–4 employees
Availability:: 1 pc.
On Request
Updated at: 22-08-2026
Condition:: New Surplus

New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: Schneider Electric
Mechanical Robustness: vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor closed15 Gn for 11 ms || shocks contactor open8 Gn for 11 ms
Ambient Air Temperature For Operation: -40-60 °C || 60-70 °C with derating
Climatic Withstand: IACS E10 || IEC 60947-1 Annex Q category D
Pollution Degree: 3
Flame Retardance: V1 conforming to UL 94
Ambient Air Temperature For Storage: -60-80 °C
