Schneider Electric LC2D40AG7

Name: Reversing Contactor 3P (3 NO) AC-3 <= 440 V 40 A Coil 120 V AC 60 Hz
Brand: Schneider Electric
SKU: LC2D40AG7

Reversing Contactor 3P (3 NO) AC-3 <= 440 V 40 A Coil 120 V AC 60 Hz

1 / 2

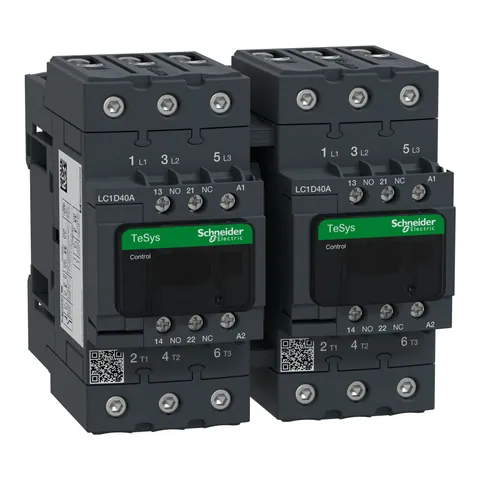

Manufacturer catalogue image

Product Description

Lifecycle Status:

The reversing contactor is designed for motor control applications, rated for up to 40A AC-3 and capable of handling motor power up to 18.5kW at 400V. It incorporates a 120V 50/60Hz AC coil and includes built-in auxiliary contacts, specifically configured as 2NO + 2NC, with the NC contacts being mirror certified for safety control systems.

With a compact design measuring 119mm in width, this contactor supports DIN-rail or panel mounting. It features a mechanical interlock, ensuring reliable operation. The clear separation between power and control circuits allows for easy access to connections. The contactor is designed for high electrical durability, rated for 1.6 million cycles at 40A AC-3 440V, making it suitable for demanding motor switching applications.

Furthermore, it is certified to several international standards including IEC, UL, and CSA, and complies with Green Premium regulations. The device operates within a temperature range of -40°C to 60°C, with derating applicable at higher temperatures. Its robust construction can withstand significant mechanical stresses, including vibrations up to 4 Gn when closed.

The contactor is equipped with EverLink BTR screw terminals, ensuring constant tightening pressure for reliable power connections. The Designation Code for this product is LC2D40AG7.

Send Inquiry

Payment methods:

Offer details

Best offer from:: Trusted supplier — Poland, member since 2023, 50–99 employees
Availability:: 3 pcs.
In-Stock
Updated at: 05-09-2026
Warranty:: 24 months
Condition:: New Factory Sealed

New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: Schneider Electric
Mechanical Robustness: vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor open10 Gn for 11 ms || shocks contactor closed15 Gn for 11 ms
Ambient Air Temperature For Operation: -40-60 °C || 60-70 °C with derating
Climatic Withstand: IACS E10 || IEC 60947-1 Annex Q category D
Pollution Degree: 3
Flame Retardance: V1 conforming to UL 94
Ambient Air Temperature For Storage: -60-80 °C
