Schneider Electric LC2DT25G7
IEC Reversing Contactors, TeSys Deca, 25A Resistive Load, 4 Pole, 4 NO, 120VAC 50/60Hz Coil, Open Style
1 / 1

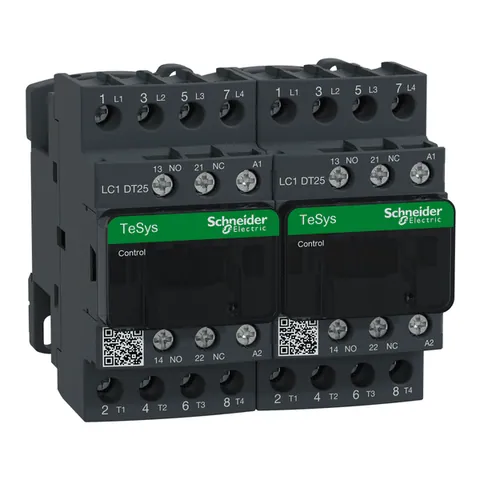

Manufacturer catalogue image
Product Description
Lifecycle Status:
The TeSys D contactor series is engineered to provide optimal performance within control systems. These contactors can be employed across diverse application scenarios, offering versatility in their usage.
Available in multiple ratings, these contactors cater to a broad spectrum of applications, from handling inductive motor loads up to 150 full-load amps to resistive loads up to 200 amps. This particular reversing 4 pole IEC contactor is designed for easy mounting on DIN rail or direct panel installation.
Featuring four normally open power contacts, this contactor boasts a 25A resistive load rating. It comes equipped with a 120 VAC 50/60 Hz coil and includes one normally open and one normally closed auxiliary contact as standard. The NC contact is mirror certified.
The contactor's load and auxiliary connections are facilitated by screw clamp terminals. A comprehensive range of accessories ensures that it can meet the demands of most applications.
Measuring 3.35 inches in height, 3.54 inches in width, and 3.54 inches in depth, this contactor weighs 1.61 lbs. It is certified to UL, CSA, IEC, CCC, EAC, and Marine standards, making it a Green Premium product that adheres to RoHS/REACh regulations.
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — Romania, member since 2023, 1–4 employees- Availability:
- 1 pc.On RequestUpdated at: 22-08-2026
- Condition:
- New Surplus
New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Schneider Electric
- Mechanical Robustness
- vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor open10 Gn for 11 ms || shocks contactor closed15 Gn for 11 ms
- Ambient Air Temperature For Operation
- -40-60 °C || 60-70 °C with derating
- Climatic Withstand
- IACS E10 || IEC 60947-1 Annex Q category D
- Pollution Degree
- 3
- Flame Retardance
- V1 conforming to UL 94
- Ambient Air Temperature For Storage
- -60-80 °C
