Schneider Electric LC2K0610E7

Name: Schneider Electric TeSys K 3-Pole Reversing Contactor for AC-3 Applications
Brand: Schneider Electric
SKU: LC2K0610E7

Schneider Electric TeSys K 3-Pole Reversing Contactor for AC-3 Applications

1 / 1

Schneider Electric LC2K0610E7 TeSys K 3-Pole Reversing Contactor for AC-3 Applications — Electronics & PCBs

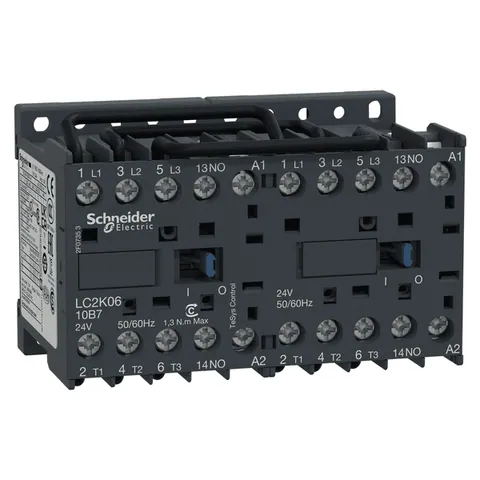

Manufacturer catalogue image

Product Description

Lifecycle Status:

The LC2K0610E7 is a 3-pole TeSys K reversing contactor by Schneider Electric, ideal for simple motor applications rated up to 2.2kW@400V. This compact device measures only 90mm in width and is compatible with DIN-rail and panel mounting. It features a mechanical interlock and pre-wired reversing circuit, along with a 48V AC coil (50/60Hz) and two built-in auxiliary contacts (2NO).

The LC2K0610E7 is designed for applications requiring a high degree of reliability and safety. It complies with multiple international standards, including IEC, UL, CSA, CCC, EAC, and Marine, and is certified as Green Premium (RoHs/Reach).

This reversing contactor can be completed with auxiliary contact blocks (LA1K, LA2K) and thermal relays (LR2K), making it a versatile solution for a wide range of industrial applications.

Send Inquiry

Payment methods:

Offer details

Best offer from:: Trusted supplier — United Kingdom, member since 2021
Availability:: 2 pcs.
In-Stock
Updated at: 31-10-2025
Condition:: New Factory Sealed

New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: Schneider Electric
Mechanical Robustness: shocks contactor closed, on X axis10 Gn for 11 ms IEC 60068-2-27 || shocks contactor closed, on Y axis15 Gn for 11 ms IEC 60068-2-27 || shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27 || shocks contactor opened, on X axis6 Gn for 11 ms IEC 60068-2-27 || shocks contactor opened, on Y axis10 Gn for 11 ms IEC 60068-2-27 || shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27 || vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 || vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6
Ambient Air Temperature For Operation: -25-50 °C
Flame Retardance: V1 conforming to UL 94 || requirement 2 conforming to NF F 16-101 || requirement 2 conforming to NF F 16-102
Ambient Air Temperature For Storage: -50-80 °C
Protective Treatment: TC IEC 60068 || TC DIN 50016
Ip Degree Of Protection: IP20 VDE 0106
