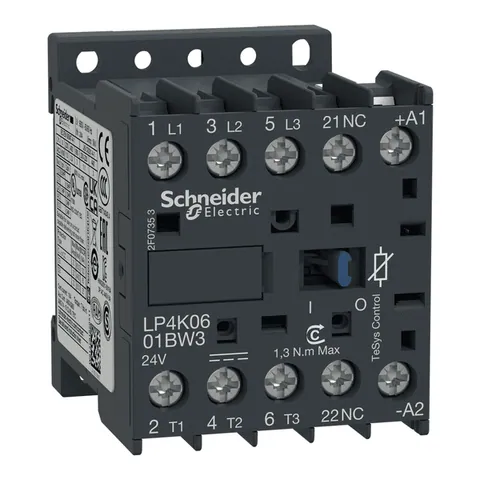

Schneider Electric LP4K0601BW3
TeSys K Contact Relay, 3P, AC-3, up to 440V, 6A, 24VDC Coil
1 / 1
Manufacturer catalogue image
Product Description
Lifecycle Status:
The TeSys K Contact Relay, featuring 3 poles (3NO), is designed to cater to motor control applications with a maximum load capacity of 6A/690V (AC-3) and 2.2kW@400V. It boasts a low consumption 24V DC coil with a transient suppressor module, along with a built-in auxiliary contact for added functionality.
This relay offers screw clamp terminals for easy connection, ensuring reliable performance even in environments up to 50°C and operating rates of up to 600 cycles/hour in AC-3. Its compact design, measuring just 45mm in width, allows for versatile mounting options such as DIN-rail or screw fixing.
The TeSys K Contact Relay is multi-standard certified (IEC, UL, CSA, CCC, EAC) and complies with Green Premium standards (RoHS/REACh), making it an environmentally friendly choice for your applications. With its robust construction and reliable operation, this contact relay is the ideal solution for standard applications.
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — United Kingdom, member since 2021- Availability:
- 9 pcs.In-StockUpdated at: 31-10-2025
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Schneider Electric
- Product Certifications
- CB Scheme || CCC || UL || CSA || EAC || CE || UKCA
- Ambient Air Temperature For Operation
- -25-50 °C
- Standards
- EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4
- Flame Retardance
- V1 conforming to UL 94 || requirement 2 conforming to NF F 16-101 || requirement 2 conforming to NF F 16-102
- Ambient Air Temperature For Storage
- -50-80 °C
- Ip Degree Of Protection
- IP2X
